Product Details
DSO-152 is a Handheld Digital Oscilloscope with a 200KHZ Bandwidth and 2.5MSA/S Sampling Rate. (Does Not Include FNIRSI P6100 X1 X10 SCOPE PROBE and BDD OSCOPE PROBE BNC-MCX ADAPTER)
Handheld Digital Oscilloscope
Features
- Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
- Dso oscilloscope: 2.5MS/s, 200KHz bandwidth, wide voltage range.
- High-definition 320*240 LCD, Type-C interface.
- fnirsi handheld oscilloscope: Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Suitable for analog and digital signals.
- Convenient one-key AUTO adjustment.
- Displays waveform without complex setup.

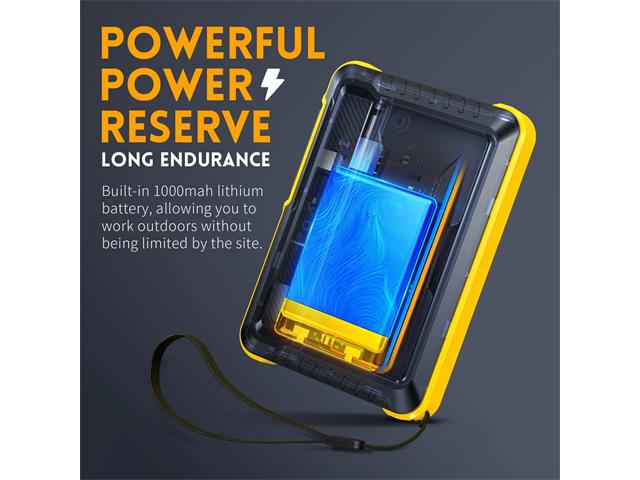

- 1000mAh lithium battery, up to 4 hours.
- Long press AUTO for baseline calibration.
Specifications
- Analog Bandwidth: 0~200kHz
- 1 Channel
- Sampling Speed: 2.5MS/s
- Vertical Scale: 10mV/div ~ 20V/div
- Timebase Range: 1 μs/div ~ 50 s/div
- Voltage Range: X1: 40Vpp; X10: 800Vpp
- Trigger Modes: Auto, Normal, Single
- Frequency: 1K Duty Cycle: 50%
- Display: 2.8inch LCD (320×240 pixels)
- Lithium Battery Capacity: 1000mAh
- Dimensions: 99 x 68 x 19.5mm
- Weight: 100g
- Certification: CE
Downloads
Additional Information
| Device | Oscilloscope |
| Type | Handheld | Digital |
