Product Details

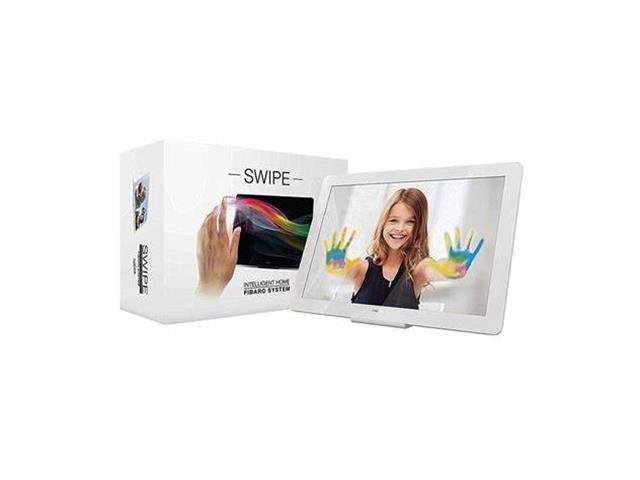

Fibaro Swipe Controller Compatible with any Z-Wave or Z-Wave+ Controller
Features
- Compatible with any Z-Wave or Z-Wave+ Controller.
- Supports protected mode (Z-Wave network security mode) with AES-128 encryption.
- Allows contactless gesture detection.
- Battery and/or VDC powered. When connected to an external, VDC power source, the battery serves as an emergency power source.
- Gestures and actions are confirmed by the buzzer and can be indicated additionally by the built-in LED diode.
- Gesture controlled menu – allows to operate the device without dismounting it.
Specifications
- Power supply: 5V DC power supply and/or batteries
- Operational current: < 60mA
- DC supply connector: micro-USB
- Battery type: 4 x 1.5V AA
- EU directives compliance: RED 2014/53/EU RoHS 2011/65/EU
- Radio protocol: Z-Wave (500 series chip)
- Radio frequency:
- 868.4 or 869.8 MHz EU;
- 908.4 or 916.0 MHz US;
- 921.4 or 919.8 MHz ANZ;
- 869.0 MHz RU;
- Radio transmit power: up to 5 dBm (EIRP)
- Range:
- up to 50m outdoors
- up to 40m indoors (depending on terrain and building structure)
- Dimensions: 178 x 130 x 29 mm
Downloads
Additional Information
| Device | Swipe Controller |
