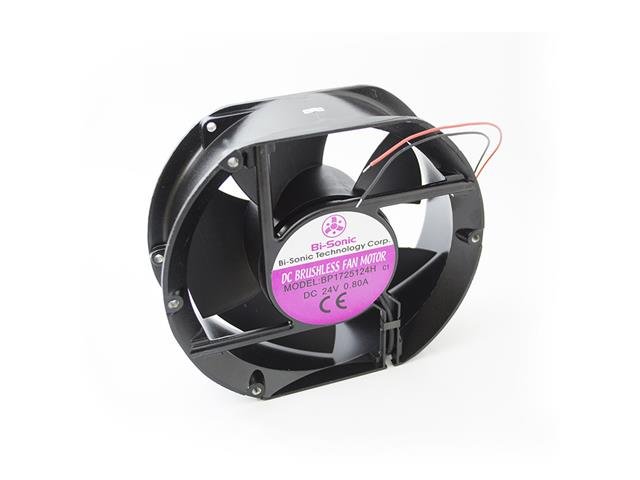

Fan 172x150x51mm 24VDC Ball Bearing AF=235.1(CFM) 3400RPM 0,80A 19.2W 58.2DBA

24VDC Ball Bearing Fan

Specifications

Size : 172x150x51mm (6.77"x5.91"x2")
Construction
- Glass fiber reinforced plastic:
- Impeller and housing PBT are UL 94V-0 rating
Operating Temperature :
- Ball bearing - 30°C to +75°C
- Sleeve bearing - 10°C to +70°C
Insulation Resistance: 10meg Ohm min. at 500 VDC (between frame and terminal)
Dielectric Strength : 5mA max. at 500 VAC 60Hz one minute (between frame and terminal)
Function:
- auto-restart option
- frequency generator or rotation detection signal option
Weight : 730 grams

Device	Fan
Type	24VDC \| Ball Bearing
