Product Details
EZVIZ Smart Home WiFi Camera PAN & Tilt Dual Lens 5MP 30m IR, 1/3” CMOS, H2.65, PAN:350°, Tilt:80°, 3D DNR, WDR, Human/Vehicle Shape Detection, Two Way Talk, Dual 3K, Supports Micro SD up to 512GB, 1xRJ45 10/100M Port, PSU12V1.5A, WIFI6

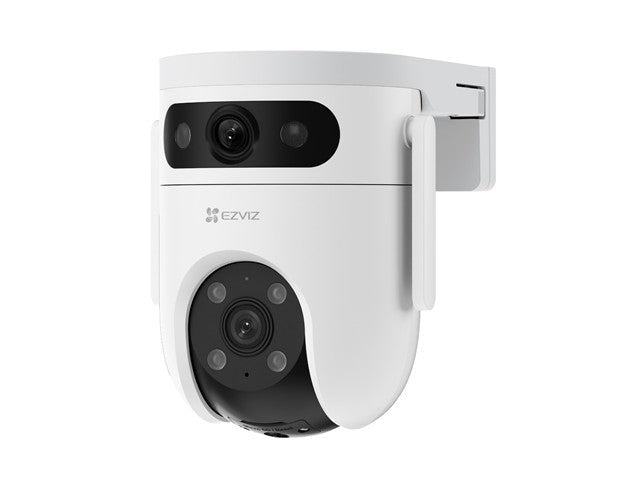

Smart Home WiFi Camera
Overview

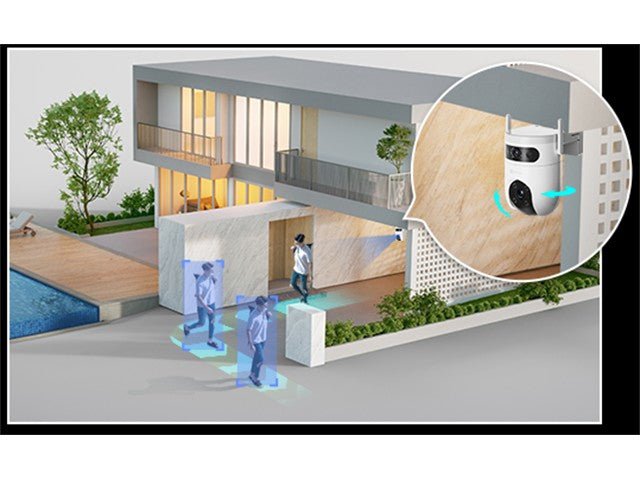

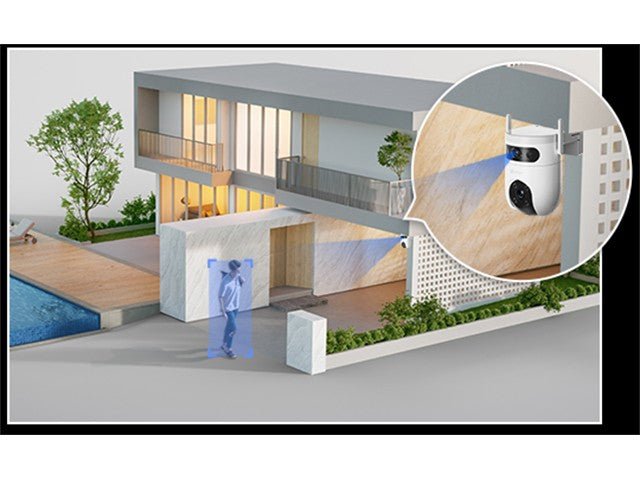

Experience the future of security automation with the H9c 3K Dual-Lens Smart Wi-Fi Camera. This advanced camera system provides even clearer and more detailed images than its predecessor with its 3K resolution. The dual-lens design ensures comprehensive coverage of large areas, reducing the need for multiple cameras. It also has advanced features like AI-powered human, vehicle shape detection, and smart tracking.
Specifications
| Specifications | |
|---|---|
| Model | CS-H9c-R105-8H55WFL |
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens |
Top lens: 2.8 mm @ F1.6, viewing angle: diagonal 110°, horizontal 96°, vertical 54°; Bottom lens: 6 mm @ F1.6, viewing angle: diagonal 60°, horizontal 52°, vertical 28° |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 3K (2880 × 1620) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |

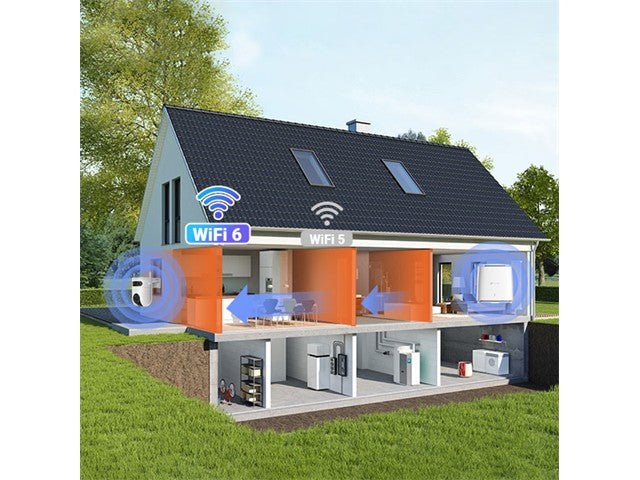

| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g,802. 11n,802.11ac,802.11ax |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz, 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz |
| Channel Bandwidth | Supports 20 MHz @ 2.4G, Supports 20 / 40 / 80 MHz @ 5G |
| Security | WPA-PSK/WPA2-PSK |
| Transmission Rate | 1b: 11 Mbps, 11a/g: 54 Mbps, 11n: 150 Mbps, 11ac: 433 Mbps, 11ax: 600 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | AI-powered human shape detection; AI-powered vehicle shape detection; Motion detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay Storage (Subscription required) |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V/1.5A |
| Power Consumption | Max. 18 W |
| Dimensions | 147 × 116 × 142 mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Weight | Net weight: 633 g (22.33 oz) With package: 974 g (34.36 oz) |
| In the box | |
| In the box | - H9c Dual 3K Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information × 2 | |
| - Quick Start Guide | |
Additional Information
| Device | Camera |
| Type | Smart | Home | WiFi |
