Product Details
EZVIZ Smart Home WiFi Panoramic Fisheye Camera 6MP 1.82mm @ F2.0 Lens, 10m IR, 360° Panoramic View, Two-Way Talk, 1/2.8” CMOS, 3D DNR, WDR, H.264 / H.265, Motion Detection, AI-Powered Human Shape Detection, Supports Micro SD MAX512GB, Type-C
Smart Home WiFi Panoramic Fisheye Camera
Specifications
| Compression | |
|---|---|
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Image | |
| Max. Resolution | 3K⁺ (2320 × 2320) |
| Frame Rate | Max. 25 fps |
| Network | |
| Smart Alarm | Motion Detection, AI-Powered Human Shape Detection |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface | |
| Storage | Supports microSD card (max. 512 GB) |
| Power | Type-C |
| Wi-Fi | |
| Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G: 2.412 GHz ~ 2.472 GHz 5G: 5.17 GHz ~ 5.25 GHz |
| Channel Bandwidth | Support 20 MHz |
| Security | WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b 11 Mbps, 11g 54 Mbps, 11nHT20 MCS7, 11a 54 Mbps, 11nHT20 MCS7, 11ac MSC7 |
| Output Power (EIRP) | 19 dBm |
| Antenna Gain |
2.4G: 1.79 dBi 5G: 3.61dBi |
| General | |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5 V / 2 A |
| Power Consumption | Max. 8 W |
| IR Range | Max. 10 meters (32.81 ft) |

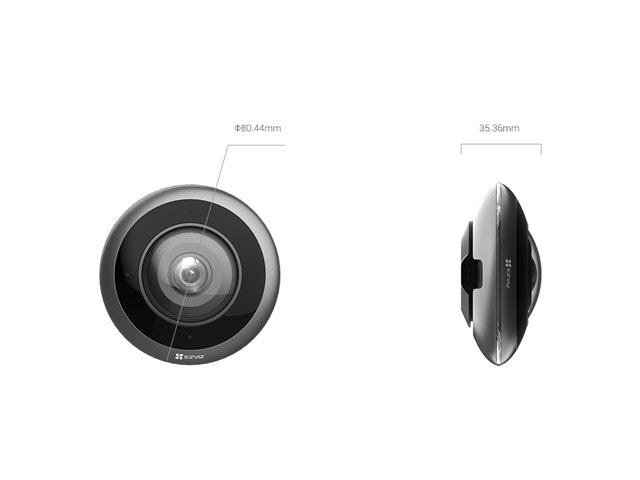

| Product Dimensions | φ80 × 35 mm (φ3.15 × 1.38 inch) |
| Packaging Dimensions | 114 × 114 × 120 mm (4.49 × 4.49 × 4.72 inch) |
| Bare Weight | 122 g (4.3 oz) |
| Weight | 610 g (21.52 oz) |
| In the box | |
| In the box | - E4p Camera |
| - Mounting Base | |
| - Drill Template | |
| - Power Adapter | |
| - Type-C Cable | |
| - Screw Kit | |
| - Pin Key | |
| - Regulatory Information × 2 | |
| - Quick Start Guide | |
Downloads
Additional Information
| Device | Camera |
| Type | Smart Home | WiFi | Panoramic | Fisheye |
