EZVIZ Smart Fingerprint Door Lock, Metallic Grey, Unlocking Method: Passcode / Proximity Card / Mechanical Key (For Emergency), 2.4GHz WiFi, Bluetooth, Lift-Up Lock Body, Type-C charging, aluminium alloy, 8xAA Alkaline Batt, IP65 (Front Panel)
Smart Fingerprint Door Lock
Features
- Please note that only the exterior lock panel of the DL05 is weather-resistant.
- The DL05 currently supports the following cameras to snap a photo or record a video at the certain preset viewing angle upon sensor detection: H6c, C6N, CP1, TY1, TY2. The list may grow as EZVIZ launches more compatible products in the future.
- The auto-lock function is supported when using the fingerprint, passcodes or proximity cards to unlock the door.
- When the privacy mode is enabled, only the administrator can unlock the door using his/her fingerprints, passcodes or proximity cards, or anyone with the mechanical emergency key.
- When being connected via Bluetooth with the Wi-Fi mode disabled, the lock can run up 365 days with fully charged batteries based on the usage of 10 openings per day.
When the lock is connected via Wi-Fi, its battery life may reduce due to internet activities, and the actual use may vary due to the network stability or other environmental factors.
When your home network is not reliably stable, it is recommended to turn off the Wi-Fi mode to better manage the lock's battery usage.
Specifications
| Material and Specification |
| Panel Material |
Aluminum alloy |
| Panel Size |
360 × 67 × 27 mm (14.17 × 2.64 × 1.06 inch) |
| Color |
Metallic grey |
| Lock Body Type |
Lift-up lock body |
| Lock Cylinder |
5085 / 6068 |
| Weatherproof |
IP65 (Front Panel) |

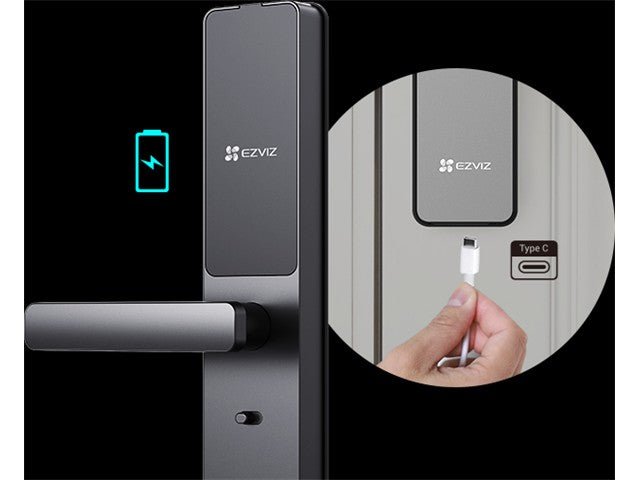

| Emergency Charging |
Type-C |
| Working Power |
1.5V AA alkaline batteries x8 |
| Technical Specification |
| Unlocking Method |
Fingerprint, passcode, proximity card, mechanical key, bluetooth key via EZVIZ App, temporary codes, remote unlock |
| User Capacity |
50 pcs |
| Fingerprint Capacity |
50 pcs |
| Passcode Capacity |
50 pcs |
| Card Capacity |
50 pcs |
| Communication Methods |
2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes |
Supports |
| Anti-Peeping Codes |
Supports (Up to 20 digits) |
| Low Battery Warning |
Supports |
| Privacy Mode |
Supports |
| User Management |
Supports |
| Real Time Notification |
Supports |
| Anti-Test Locking |
Supports |
| Anti-Tamper Alarm |
Supports, enter error 5 times within 5 min, locking 3 min. |
| Remote Control |
Supports |
| Child Safety Lock |
Supports |
| Voice Control |
Soon Supports (Google Assistant / Amazon Alexa) |
| Supported Door Thickness |
30-110 mm |
| Working Temperature |
-25°C~70°C |
| Operating Humidity |
10%~95% |
| In the box |
| In the box |
- DL05 Smart Fingerprint Lock |
| (Front Panel + Rear Panel + Hole Template) |
| - Lock Body |
| - Standard Screw Bag |
| - Lock Body Screw Bag (2) |
| - Locating Screw Bag |
| - Reversing Screw (2) |
| - AA-Sized Battery (8) |
| - Mechanical Key (2) |
| - Square Rod |
| - Proximity Card (2) |
| - Silicon Plug (For Rear Panel) |
| - Regulatory Information |
| - Quick Start Guide |
Downloads
Additional Information
| Device |
Door Lock |
| Type |
Smart | Fingerprint |
