Product Details
EZVIZ Smart Home WIFI Camera PAN & Tilt 5MP 4mm LENS, 1/3"CMOS, 3D DNR, TRUE WDR, H.264 / H.265, 3K (2880×1620), Supports Micro SD Card (MAX512GB), 1xRJ45 10/100m, 2.4G:Supports 20MHz, WIFI 6 2.4GHz, Lens Mount:M12, Type-C, PSU:5V2A

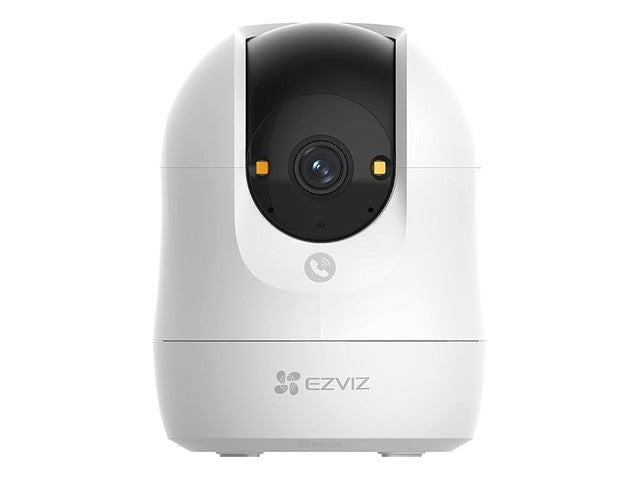

Smart Home WIFI Camera PAN & Tilt
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@F1.6, ViewAngle: 110°(Diagonal), 92° (Horizontal), 51°(Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | True WDR |
| Compression | |
| Video Compression | H.264 / H.265 |
| Video Bit Rate | Adaptive bit rate |
| Image | |
| Max. Resolution | 4K (3840 × 2160) |
| Frame Rate | Self-adaptive during network transmission |
| Network | |
| Smart Alarm | PIR Motion detection AI-Powered Human Shape Detection AI-Prowered Pet Shape Detection Loud Noise Detection |
| Wi-Fi Pairing | AP pairing / Bluetooth pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface | |
| Storage | MicroSD card slot (max. 512 GB) |
| Power | Type-C |
| Wired Network | RJ45 × 1 (10 M / 100 M self-adaptive Ethernet port) |
| Wi-Fi | |
| Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, |
| Frequency Range | 2.4G: 2400~2483.5MHz 5G: 5170MHz-5250MHz |
| Channel Bandwidth | 2.4G: Supports 20MHz 5GHz: Supports 80MHZ |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7 |
| Output Power (EIRP) | 19 dBm |
| Antenna Gain | 1.9 dBi |
| General | |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ) Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V / 2A |
| Power Consumption | Max. 8 W |
| IR Range | Max. 10 meters (32.81ft) |
| Dimensions | 88 × 88 × 113 mm (3.46 × 3.46 × 4.45 inch) |
| Packaging Dimensions | 103 × 103 × 168 mm (4.06 × 4.06 × 6.61 inch) |
| Net Weight | 222 g (0.49 lb) |
| In the box | |
| In the box | - C6N G1 Camera |
| - Power Adapter | |
| - Power Cable | |
| - Drill Template | |
| - Mounting Plate | |
| - Screw Kit | |
| - Regulatory Information × 2 | |
| - Quick Start Guide | |
Downloads
Additional Information
| Device | Camera |
