Product Details
SPDT ON ON PCB 0,4A@20VAC Toggle Sealed Sub-mini IP67

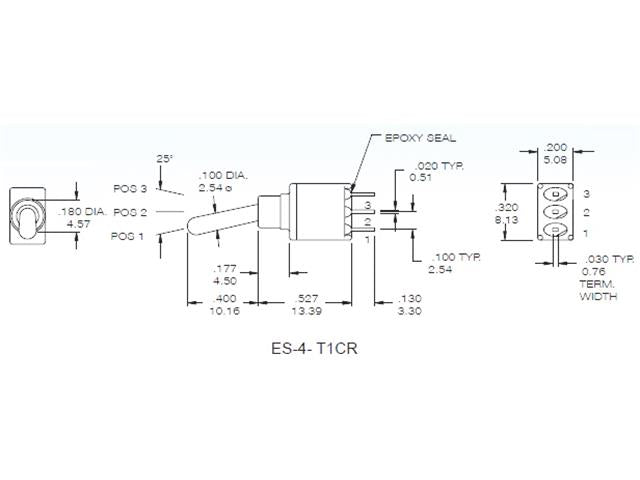

Toggle Sealed Sub-mini Switch
Overview
Sealed Sub-Miniature toggle switch with PC thru-hole termination. Sealed structure can avoid any contaminant during soldering and cleaning process. The ESD protection available: Anti-static plastic actuator -9000 V DC static resistance between toggle and terminal. This switch is perfect for Telecommunications and Medical equipment.
Feature(s)
- Sealed against solder and cleaning processes
- Multi-positions
- ESD protection available
- Circuit: SPDT
Specifications
- Contact Rating: R- 0.4 VA max @ 20 V AC or DC
- Electrical Life: 30,000 make and break cycles at full load
- Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Strength: 1,500 V RMS @ sea level.
- ESD Resistant Option: P2 insulating actuator only: 9,000 VDC min. @ sea level,actuator to terminals.
- Degree of Protection: IP67
- Operating Temperature: -30°C to 85°C
Additional Information
| Device | Switch |
| Type | Toggle | Sealed | Sub-mini |
| Termination | PCB |
| Switch Circuit | SPDT ON ON |
| Electrical Rating | 0,4A@20VAC |
| IP Rating | IP67 |
