Product Details
Lithium Thionyl Chloride 1/2AA Battery 3.6V 1.2Ah

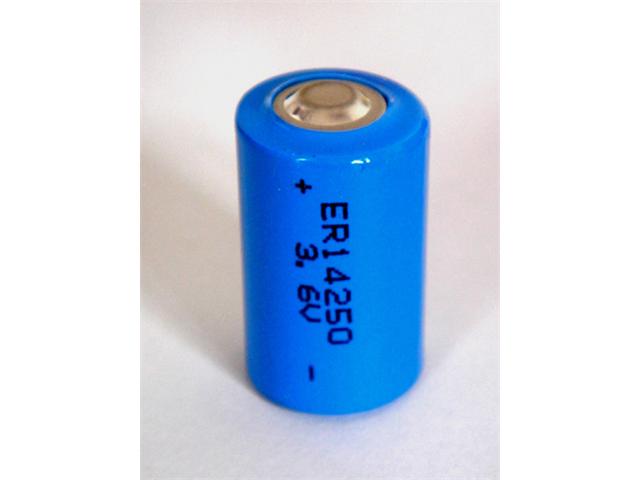

Lithium Thionyl Chloride 1/2AA Battery
Specifications
- Nominal voltage: 3.6V
- Nominal capacity: 1200mAh(0.5mA / 2.0V)
- Discharge end-voltage: 2.0V
- Operating voltage: 3.3V(330Ω, in 5s)
- Max constant discharge current: 50mA
- Max. pulse current: 100mA
- Ambient temperature range: -55°C~ +85°C
- Storage life: ≥10 year, Yearly self-discharge ≤ 1%
- Appearance: Cylinder Shape
- Max dimension : φ14.5×h25.0mm
- Max weight: 11g
Appearance & Dimension/Weight
Downloads
Additional Information
| Device | Battery |
| Type | Axial | Leads |
