Product Details

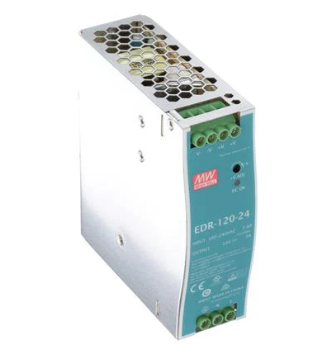

DIN Rail Metal Case Switch Mode Power Supply Input: 100 ~ 240VAC/127 - 370VDC. Output 24VDC @ 5A
SWITCH MODE POWER SUPPLY
SPECIFICATIONS
| Attribute | Value |
|---|---|
| AC or DC Input Voltage | AC |
| AC or DC Output Voltage | DC |
| Input Voltage | 90 → 264V AC |
| Output Voltage | 24 V DC |
| Output Current | 5 A |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 125mm |
| Series | EDR |
| Mounting Type | DIN Rail Mount |
| Width | 40mm |
| Depth | 114mm |
| Output Voltage Adjustment Range | 24 → 28V |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
ADDITIONAL INFORMATION
| Device | Power Supply |
| Type | Switch Mode |
