Product Details

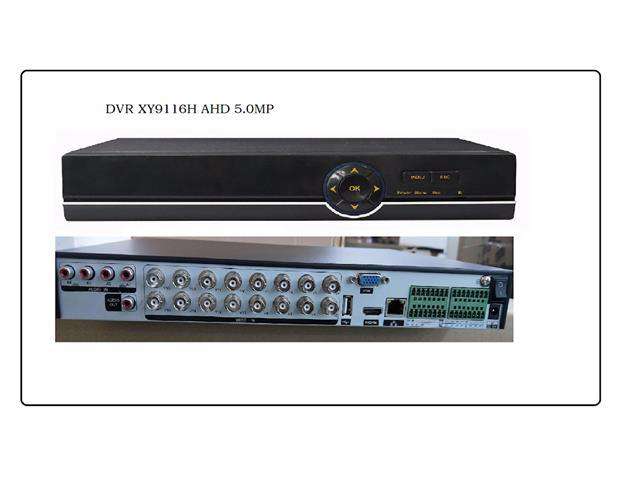

5.0MP 16CH AHD Hybrid Backward Compatible SDVR Recorder. (Supports Analogue, AHD and XYTRON IP ) Includes Alarm Output
Overview
Features
Specification
- System : Main chip : Hi3531A
- OS : LINU
- System Resources : Multi-channel Realtime recording, Multi-channel playback, Multi-channel network operation, USB Backup
- Interface : Operation menu : 16-bit true color graphical menu interface, mouse operation supported
- Display : 1/4/8/9/16display (take the pure coaxial input mode as an example)
- Video : Format : H.264
- Output : VGA (Max up to 1080P) ;HDMI (Max up to 4K)
- Preview : 16*5M@20fps(AHD)/ 16*3M@18fps(AHD)/16*1080P(5 in 1)
- Recode : 16*5M@11fps(AHD)/ 16*3M@10fps(AHD)/16*1080P @12fps (5 in 1) / 16*720P(5 in 1)
- Decode : 8*5M@8fps(AHD)/ 8*3M@10fps(AHD)/16*1080P @12fps (5 in 1) / 16*720P(5 in 1)
- Multi-mode Input : AHD:16*5M;20fps
- Hybrid:8*5M (CVBS) +8*5M (IP)
- NVR:16*5M
- Motion Detect Each view window can set 192(16*12)detection area,can set multi-level sensitivity (only for local channel)
Audio:
- Audio : G.711A
- Intercom : Support
-
Record and Playback
- Recording mode : Manual, Alarm, Motion Detect, Timer
- Local playback : 8 Channel (when Analog mode)
- Video search : Time, Date,Event,Channel search
Storage and Backup
- Storage : Local HDD, Network
Backup
- Network backup, external HDD, USB Drive, HDD
Port
- Video Input : 16 * BNC
- Video Output : 1 * VGA, 1 * HDMI
- Spot Monitor : No
- Audio Input : 4 * RCA
- Audio Output : 1 * RCA
- Alarm Input : 8 channels
- Alarm Output : 1 channel
- Network port : RJ45 10M/100M
- PTZ Control : 1 * RS485 Support multipal PTZ Contract
- USB port : 2 * USB Port
- HDD Port : 2 * SATA hdd ports (up to 6T for each one)
- Wireless Port : 3G, WIFI(can be USB WIFI Dongle)
Others
- Power : 1 * HDD: 12V/2A: 2 * HDD: 12V/5A: 4 * HDD: 12V/6A
- Power consumption : Less than 15W (no HDD)
- Working temperature : 0°-+55°
- Working humidity : 10%-90%
- Atmospheric pressure : 86kpa-106kpa
- packing Size : 56.7*-36.7*32.6cm
- Weight : 13kg
