Product Details

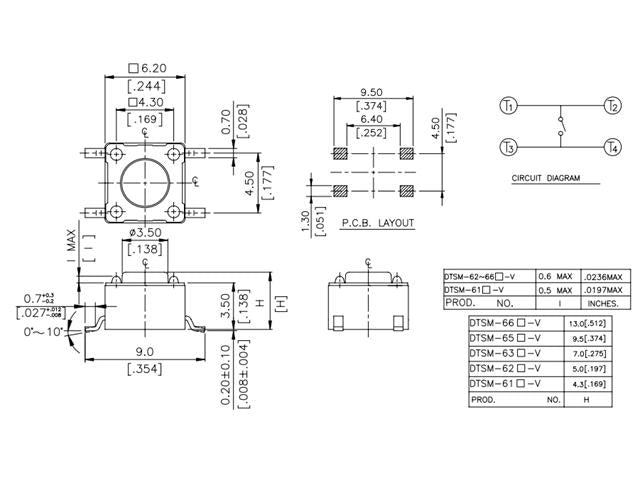

Tactile Switch • Form : 1A - SPST (NO)/4Termn • 50mA-12VDC • 260gf • SMD • Red • Case Size : 6x6 ,Height : 7.0,Lever : 3.5mm
Ultra-Miniature Tactile Switch 50mA-12VDC
Additional Information
| Group | Switch |
| Device | Switch |
| Type | Tactile |
| Highlights | Ultra-Miniature |
| Transition Style | Momentary |
| Actuator Style | Push-Button |
| Actuating Force | 260gf |
| Termination | SMD |
| Switch Circuit | 1A - SPST (NO)/4Termn |
| Electrical Rating | 50mA-12VDC |
| Color | Red |
| Case Length | 6mm |
| Case Width | 6mm |
| Case Height | 7mm |
| Lever Size | 3.5mm |
