Product Details

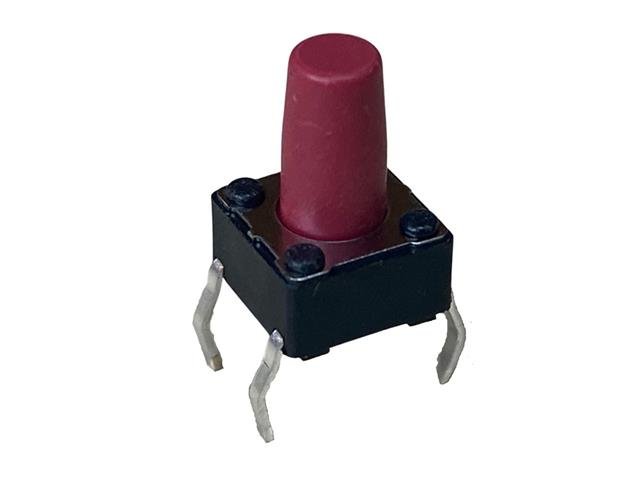

Tactile Switch • Form : 1A - SPST (NO)/4Termn • 50mA-12VDC • 260gf • PCB-ThruHole • Red • Case Size : 6x6 ,Height : 9.5,Lever : 6.0mm
Ultra-Miniature Tactile Switch 50mA-12VDC
Additional Information
| Group | Switch |
| Device | Switch |
| Type | Tactile |
| Highlights | Ultra-Miniature |
| Transition Style | Momentary |
| Actuator Style | Push-Button |
| Actuating Force | 260gf |
| Termination | PCB-ThruHole |
| Switch Circuit | 1A - SPST (NO)/4Termn |
| Electrical Rating | 50mA-12VDC |
| Color | Red |
| Case Length | 6mm |
| Case Width | 6mm |
| Case Height | 9.5mm |
| Lever Size | 6mm |
