Product Details

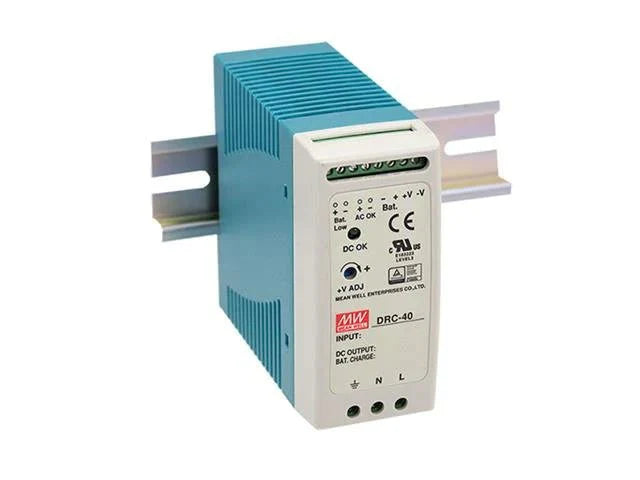

Meanwell Industrial DIN Rail Power Supply with UPS function; Output 13.8VDC at 1.9A + 13.8VDC at 1A; with Battery Charger Output.
Industrial DIN Rail Power Supply
Specifications
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Package
|
Box
|
|
Input Type
|
AC or DC
|
|
Number of Outputs
|
2
|
|
AC Voltage - Input
|
90 ~ 264 VAC
|
|
DC Voltage - Input (Min)
|
127V
|
|
DC Voltage - Input (Max)
|
370V
|
|
Voltage - Output 1
|
13.8V
|
|
Voltage - Output 2
|
13.8V
|
|
Current - Output (Max)
|
1.9A, 1A
|
|
Power (Watts)
|
40W
|
|
Voltage - Isolation
|
3 kV
|
|
Applications
|
ITE (Commercial)
|
|
Efficiency
|
86%
|
|
Operating Temperature
|
-30°C ~ 70°C (With Derating)
|
|
Features
|
Adjustable Output, Universal Input
|
|
Size / Dimension
|
3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm)
|
|
Approval Agency
|
CB, CE, cURus, TUV
|
Downloads
Additional Information
| Device | Power Supply |
| Type | Industrial | DIN | Rail |
