Product Details
DIN Rail Mount Multi Function Meter, 80 - 300VAC Input, 0 - 100A AC Input. Measuring Options Include Power (W), Power Factor, Energy (KWH) & Cumulated Time (H)

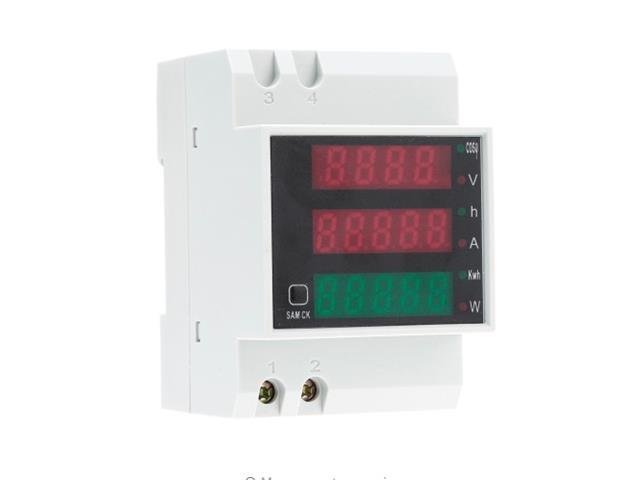

DIN Rail Mount Multi Function Meter
Feature(s)
- The testing accuracy is 1%, ±2 digits.
- Display the AC voltage and power factor by 0.31 inches 4-digit red LED.
- Display the AC current and cumulative time by 0.31 inches 5-digit red LED.
- Display the active power , electric energy by 0.31 inches 5-digit green LED.
- The measurement resolution can change automatically.
- Only suitable for AC50Hz mains supply.
Specifications
- Accuracy: 1%,±2 digits
- Voltage Range: AC 80-300V
- Current Range: AC 0-100A
- vCumulative Time: 0-999.59h
- Active Power Range: 0-30000W
- Power Factor Range: 1.000-0.000
- Electric Energy Range: 0-99999kwh
- Item Size: 7.9 * 5.3 * 6.3cm / 3.1 * 2.1 * 2.5in
- Item Weight: 116g / 4.1oz
- Package Size: 8.5 * 6 * 7cm / 3.3 * 2.4 * 2.8in
- Package Weight: 143g / 5oz
- 1 * Meter
- 1 * User Manual(English)
Package List:
Additional Information
| Device | Meter |
| Model | DIN Rail Mount | Multi Function |
