Product Details

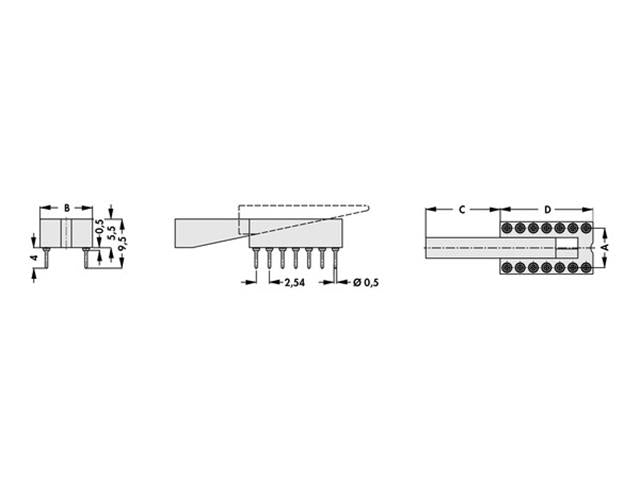

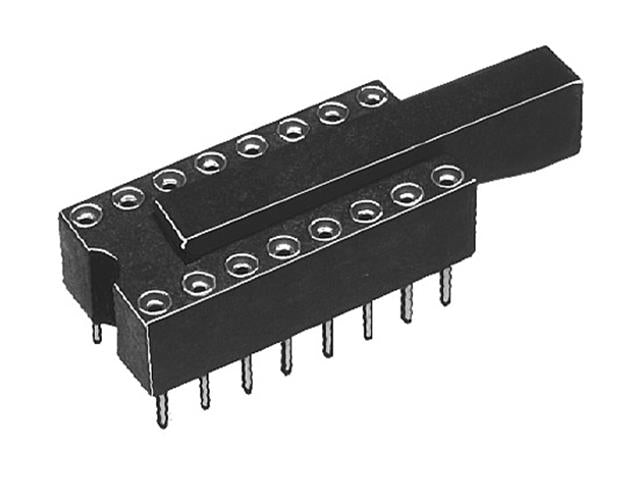

High Precision Test Socket Extractor
High Precision Test Sock-Extractor
Specifications
| no. of contacts: |
14
|
| contact material: |
CuZn-alloy
|
| contact spring: |
gold-plated
|
| contact sleeve: |
gold-plated
|
| surface contact / contact sleeve: |
Ni+≥0.2µm Au
|
| inner contact spring material: |
CuBe-alloy
|
| inner contact spring surface: |
Ni+0,75µm Au
|
| plugability for circuit points: |
|
| insert depth: |
2.5...3.6mm
|
| insertion / drawing force: |
|
| shock resistance: |
50 g
|
| vibration resistance max.: |
15 g
|
| volume resistance: |
10 mΩ
|
| contact resistance: |
4 mΩ
|
| contact resistance after 1000 cycles: |
7 mΩ
|
| capacity between two adjacent contacts: |
0,4 pF
|
| nominal current: |
1.5 A
|
| nominal voltage: |
150 V DC
|
| test voltage: |
1000 V
|
| insulating body material: |
PPS, GF
|
| temperature range: |
|
| class of inflammability: |
UL 94 V-0
|
| specific insulation resistance: |
>1012 Ω·m
|
| reflow solderable: |
yes
|
Additional Information
| Device | Sock-Extractor |
| Type | High Precision | Test |
