Product Details

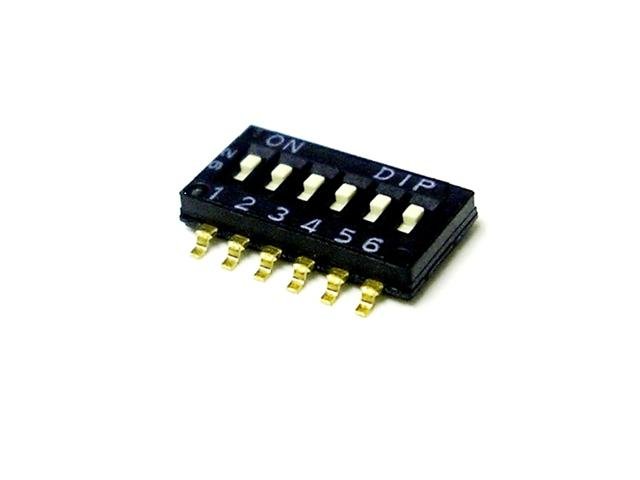

Half-Pitch Type DIP Switch • Pitch : 1,27mm • Form : 1A-SPST(NO) • 25mA-24VDC • 500gf • PCB-SMD Gull Wing
Overview
Features
 Top Tape Sealed
Specification
| Transition Style | Latching |
| Actuator Style | Slide |
| Actuating Force | 500gf |
| Termination | PCB-SMD Gull Wing |
| Switch Circuit | 1A-SPST(NO) |
| Electrical Rating | 25mA-24VDC |
| Electrical Life | 1000 Operation Cycles |
| No.of Poles/Pins | 6Pos |
| Base Colour | Black |
| Actuator Colour | White |
| Size | Pitch : 1,27mm |
| Mechanical Life | 1000 Operations |
| Stroke | 0.6mm |
| Temperature | -40°C ~ +85°C |
