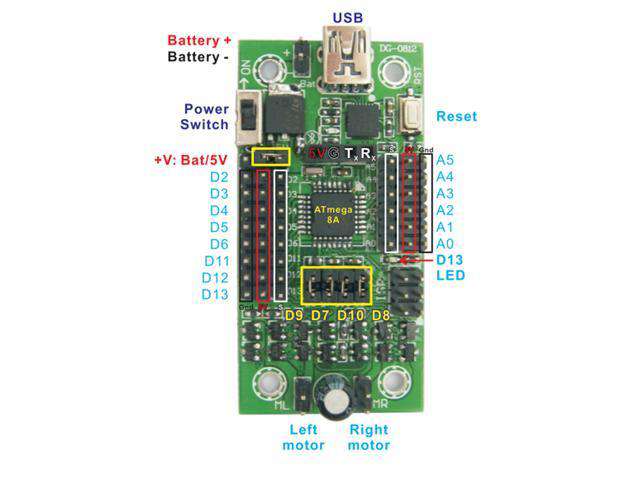

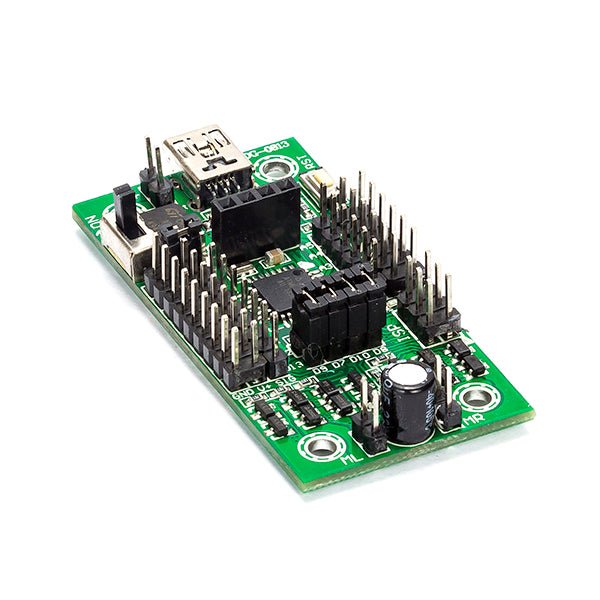

RS027 Arduino Mini Motor Driver Control Board
Overview
- The DAGU Mini-Driver control board is an Arduino based miniature control board with a number of add-ons making it ideal for embedded projects, Beginners and Educators
- The controller includes an ATMEGA8 (5V @ 16Mhz) with Arduino boot loader, Dual Channel DC motor controller (up to 2.5Amps per channel) and can drive up to 8 Servos
- Some additional features are also in place including Battery Level monitoring, a wide range of power input (5-9V) and a master On-Off switch for your project
- This controller is used in DAGU's DoodleBot and is a simplified version of the Micro Magician, offering a lower cost, feature rich solution for small and embedded projects
- We also have some new metal geared motors with a shaft extending out the back so our encoder kit can be fitted to the motors
- The robot uses our Mini Driver as a low cost "smart" motor driver that monititors the encoder to control the motor speed
Features
- ATMEGA8 5V @ 16Mhz with Arduino boot loader (Select "Arduino NG or older with ATMEGA8" in the Arduino IDE)
- Onboard 5V regulator
- Power supply voltage: 5~9V
- Dual Channel DC Motor Driver up to 2A per channel
- Supports up to 8 Servos
- SMD version of ATMEGA8: two extra Analog pins are available (A6, A7):
- Battery Level monitoring available on pin A7
- A6 is accessible through a solder pad in the back if needed
- Built in LED connected to D13
- Compatible with the DAGU Bluetooth Module (available separately)
