Product Details
Digital Voltmeter Ammeter Amp Volt Panel Meter AC 80-300V 0-100A
Digital Voltmeter Ammeter Amp Volt Panel Meter
Overview

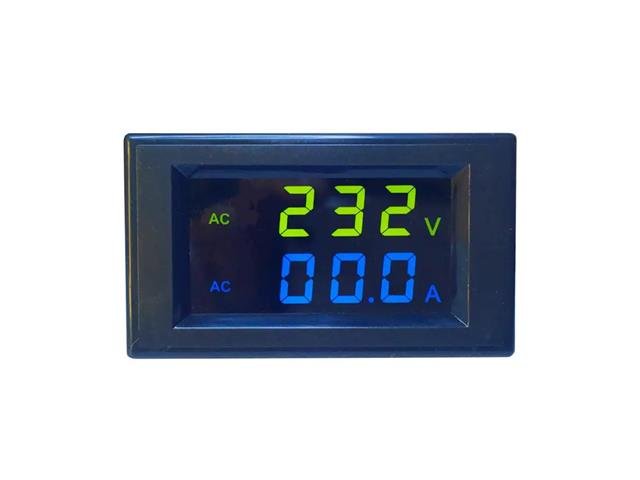

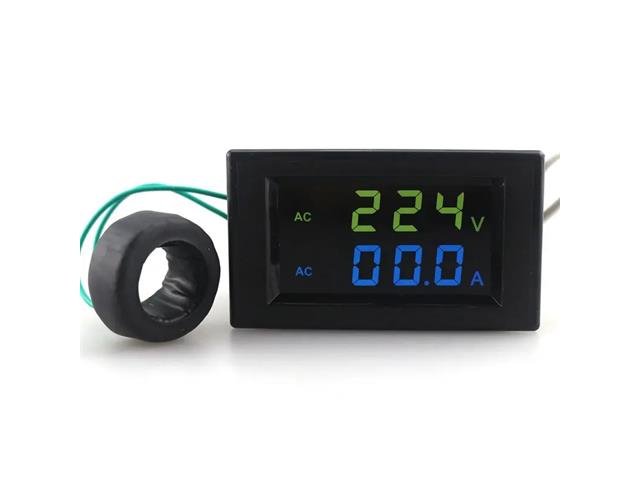

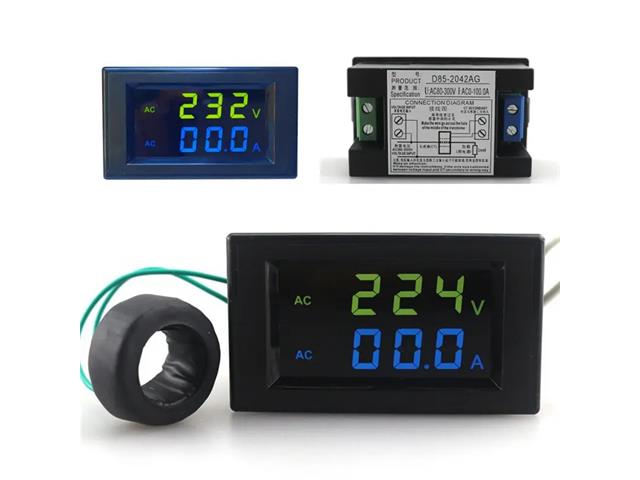

The digital AC voltage meter can simultaneously display the AC voltage and AC current. And the meter adopts colorful LCD display to show the measurement result: the yellow display measuring voltage and the blue display measuring current. And the meter needs noincreasing working power and AC transformer. ( the meter is equipped with the precise miniature transformer, so it does not need to purchase separately)
Specifications
- Measurement Accuracy: 1% ± 2 digits
- Display Screen:
- Voltage Display: yellow LCD
- Current Display: blue LCD
- Measuring range:
- AC Voltage: AC 80.0-300V, AC 200-450V
- AC current: AC 0-100.0 A, AC 0-199.9 A
- ( You can select the appropriate voltage and current range as your needs )
- Measurement Speed: about 2 times per second

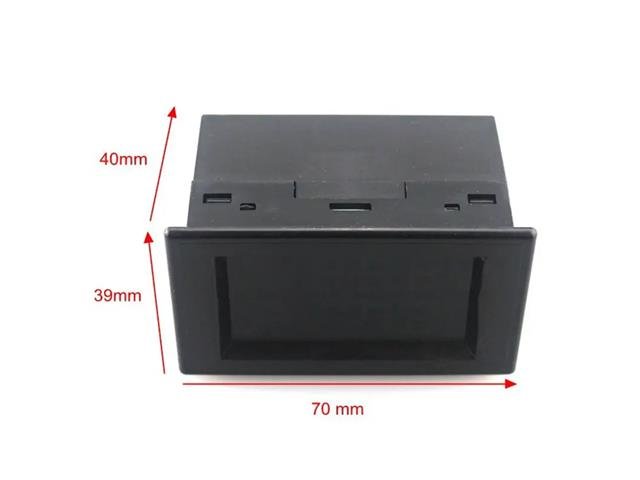

- External Dimensions: about 70*39*40mm / 2.76*1.54*1.57 inches
- Installation Size: about 68*38 mm/2.68*1.50 inches
Additional Information
| Device | Panel Meter |
| Type | Digital Voltmeter | Ammeter | Amp Volt |
