Product Details

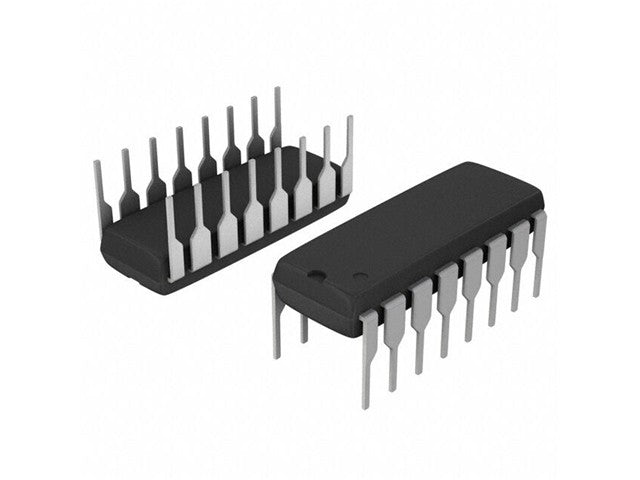

4 Circuit IC Switch 1:1 85Ohm 16-PDIP
Specifications
| Parameter | Value |
|---|---|
| Category | Integrated Circuits (ICs) |
| Function | Analog Switch / Multiplexer |
| Switch Configuration | 4 × SPST-NO |
| Multiplexer Ratio | 1:1 |
| Supply Voltage (Single) | 4.5V to 25V |
| Supply Voltage (Dual) | ±4.5V to ±22V |
| On Resistance (Ron) | 85Ω max |
| Switching Time | Ton = 300ns, Toff = 200ns |
| Leakage Current | 500pA max |
| Crosstalk | -95dB @ 100kHz |
| Package | 16-PDIP / 16-DIP Through-Hole |
| Operating Temperature | -40°C to +85°C |
Additional Information
| Device | IC |
