Product Details
Terminal Block Board For Firebeetle 2 Esp32-e IoT Microcontroller For Stable Wiring, Gdi Port, 7-24v Input, And LED Status Indicators.

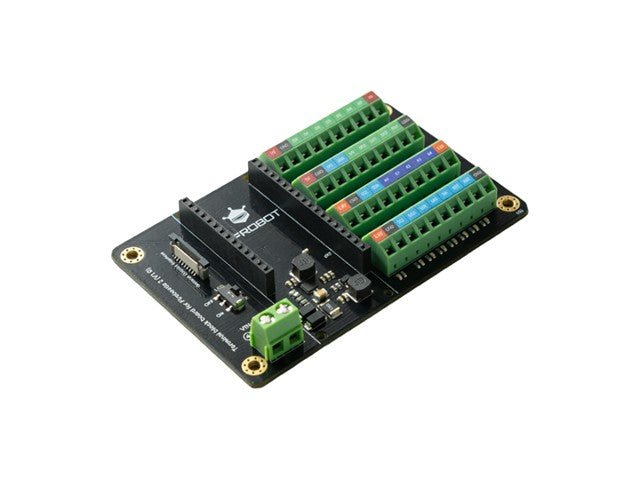

Terminal Block Board

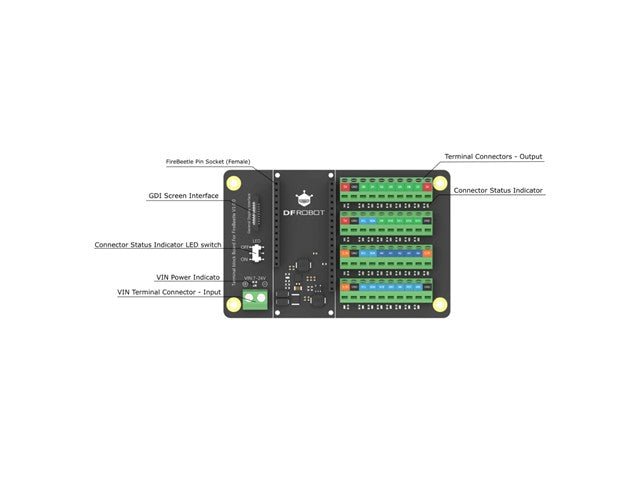

Features
- Terminal block, more stable and reliable connections
- All pins of the mainboard are broken out
- External Voltage Input: 7-24V
- GDI for connecting the display
- Clear colorful silkscreen
- Terminal block status indicator
- Terminal block status indicator switch
Specifications
- External Voltage Input: 7-24V
- Screen Port: GDI
- 5V Port x3
- 3.3V Port x3
- GND Port x6
- Digital Port x12
- Analog Port x5
- I2C x3
- SPI x1
- Port Indicator x34
- Port Indicator Color: blue, red
- Default ON Port Indicator: 5V, 3.3V, D0, D1, D5, D6, A4, RST
- Dimension (Without Package): 61 x 93.5mm/ 2.40 x 3.68"
