Product Details

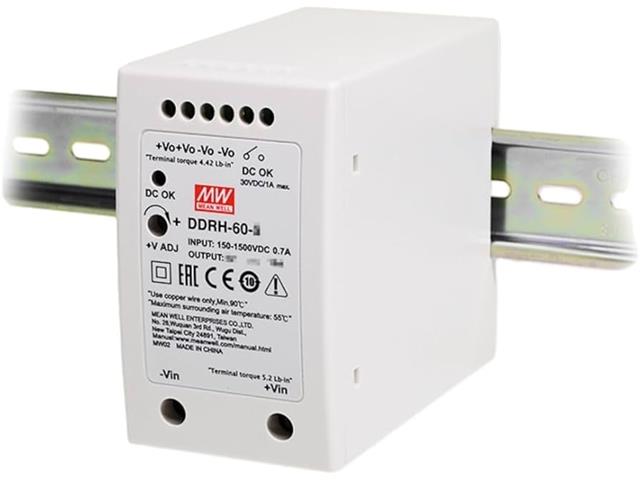

Meanwell DC-DC Converter Din Rail Type, I/P Ultra Wide Voltage Raneg:150~1500VDC, O/P Voltage Adjustable Range:48~54VDC 0~1.25A 60W
Din Rail DC-DC Converter
Specifications
|
Voltage - Input (Min)
|
150V
|
|
Voltage - Input (Max)
|
1500V
|
|
Number of Outputs
|
1
|
|
Voltage - Output 1
|
48V
|
|
Current - Output (Max)
|
1.25A
|
|
Power (Watts)
|
60W
|
|
Voltage - Isolation
|
4 kV
|
|
Applications
|
ITE (Commercial)
|
|
Efficiency
|
88%
|
|
Operating Temperature
|
-30°C ~ 80°C (With Derating)
|
|
Mounting Type
|
DIN Rail
|
|
Size / Dimension
|
4.13" L x 2.24" W x 3.68" H (105.0mm x 57.0mm x 93.5mm)
|
Downloads
Additional Information
| Device | Converter |
| Type | Din Rail | DC-DC |
