Product Details

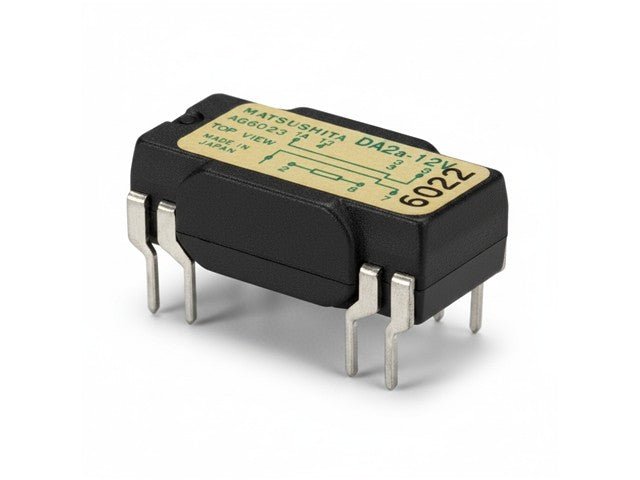

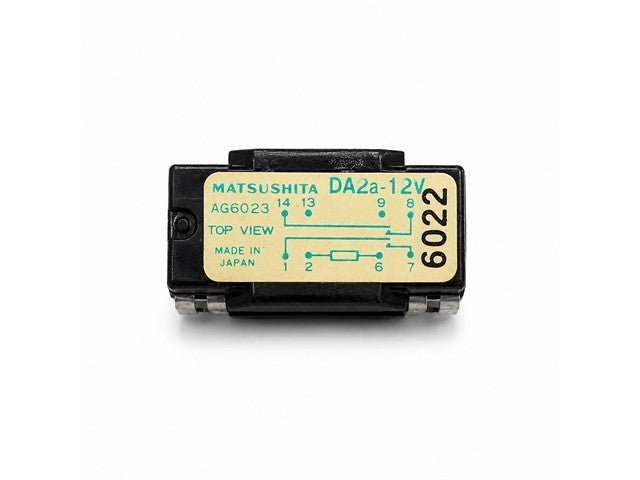

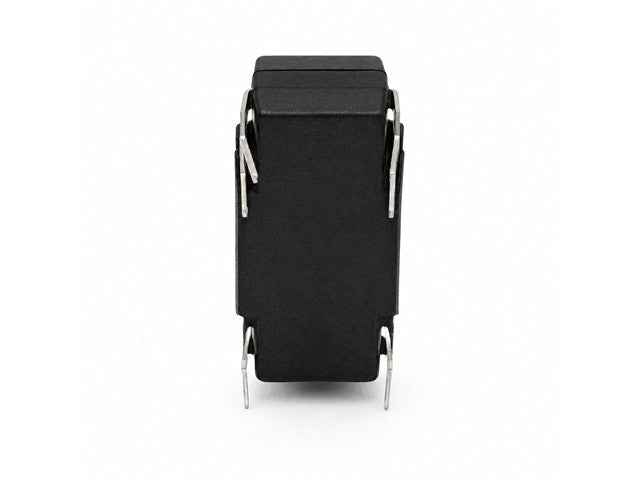

Reed 2X Forma 12VDC 510E 200MA
Specifications
- Low Profile Case
Additional Information
| Keywords | DA, Relay 12V 200mA |
| Model | DA2A12V |
| Device | Relay |
| Contact Form | Form 2A |
| Size | 19x8x6mm |
| Termination | PCB |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 200mA |
| Electrical Rating | 200mA/100VDC |
| Coil Resistance | 510Ω |
| Isolation Voltage | 500V |
| Pin Layout | DIL |
| No. of Poles | 2 Pole(s) |
