Product Details

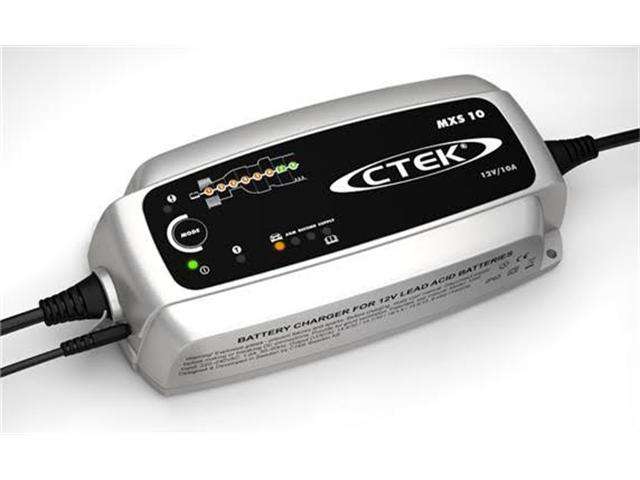

12V 10A IP65 Battery Charger for 12V Lead Acid Batteries with 8 Step Charging Cycle for optimal battery life and up to 300Ah Maintenance Charging
Overview
The MXS 10 is a charger that offers state of the art technology. It is ideal for professional use and excellent in workshops, caravans, RVs, boats or cars. The MXS 10 is perfect for solving a broad range of battery problems. It offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging and a temperature sensor for optimised charging regardless of the weather conditions. It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations. The unique display allows the user to follow the entire charging process.
Features
- Temperature compensated, fully automatic charging, and maintenance in 8 steps maximizes battery life and performance
- Numerous accessories simplify using the same charger for multiple batteries
- Water-resistant so that the solution could be taken to the problem even if it rains or snows
- Power Supply that simplifies battery replacement without losing vehicle memory
- Patented maintenance charge for a unique combination of maximized life and performance
- Recondition of deep discharged batteries
- Patented desulphation that extends the battery life
- No sparks, short-circuit proof and reverse-polarity protected for untroubled usage
- Automatic detection of end-of-life batteries that eliminates surprises
Specification
- Volt : 12V
- Rated Voltage AC : 220–240VAC, 50–60Hz
- Charging voltage
- Normal : 14.4V
- Cold/AGM : 14.7V
- Recond : 15.8V
- Supply : 13.6V
- Min battery voltage : 2.0V
- Charging current : 10A max
- Current, mains : 1.0A rms (at full charging current)
- Back current drain : <1Ah/month
- Ripple : <4%
- Ambient temperature : -20°C to +50°C, output power is reduced automatically at high temperatures
- Charger type : 8 step, fully automatic charging cycle
- Battery types : All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
- Battery capacity : 20–200Ah, up to 300Ah for maintenance
- Dimensions : 197x93x49mm
- Insulation class : IP65
- Weight : 0.8kg
