Product Details

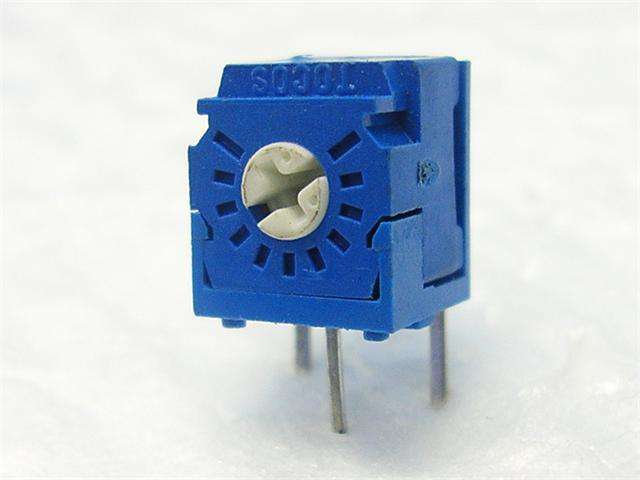

Single turn Cermet Trimmer Potentiometer, Model : GF06, Size 6.35mm Sq • PCB-X • Side Adjust • ½W @ 70°C • 200Ω • ±20% • 1 Turn
Overview
Features
Specification
Â
| Model | GF06 |
| Size | 6.35mm Sq |
| Termination | PCB-X |
| Power Rating | ½W @ 70°C |
| Resistance Value | 200Ω |
| Tolerance | ±20% |
| Tolerance Code | M |
| Element Type | Cermet |
| No. of Turns | 1 Turn |
| Adjust Style | Side Adjust |
| Mechanical Life | 100 Cycles |
