Product Details

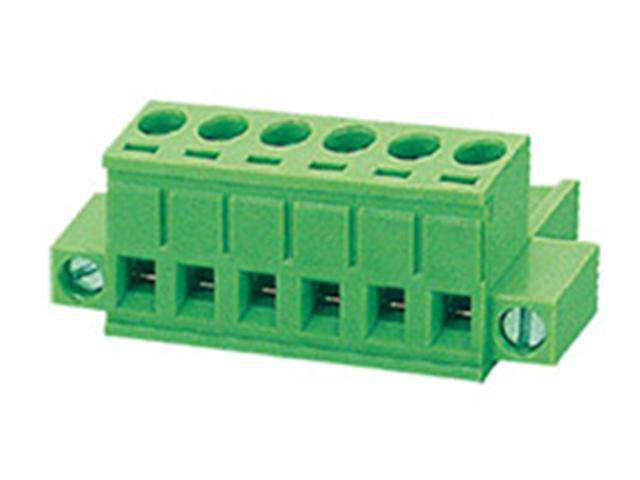

5MM 300V 15A Plug In Terminal with 6 Pins and Screw Clamp
Overview
Features
Specification
 Electrical
- Standard : UL
- Rated voltage : 300V
- Rated current : 15A
- Wire range : 28-12AWG
- Withstanding voltage : 4KV
- Torque : 0.4Nm(3.5Lb-In.)
- Ambient temperature : -40°C~+105°C
- Strip length : 7mm
- Pitch : 5.0mm, 5.08mm
- Poles : 2P-22P
- Housing : PA66,UL94V-0
- Screws : M2.5,steel,Cr3+ Zn plated
- Contact : Phosphor bronze
- Cage : Brass,Ni plated
Â
| Gender | Female |
| No. of Pins | 6 |
| Size | 5mm |
| Electrical Rating | 300V 15A |
| Wire Range | 28-12AWG |
