Product Details

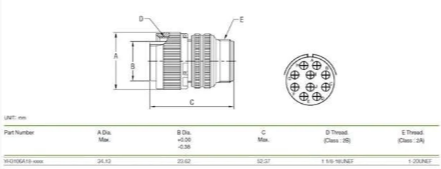

| Circular Connector MIL-DTL-5015 Style Scw Lok Cable End Plug Optional Cabl Clamp 10 Pol #16 Cont. Female Soldr. 13A 500VAC/700VDC (MS3106A18-1S)(97-3106A-18-1S) |
CIRCULAR CONNECTOR MIL-DTL-5015 STYLE
ADDITIONAL INFORMATION
| Device | Connetor |
| Type | Screw Lock | Cable End Plug | Optional Cable Clamp | 10 Poles |
| Highlights | Suitable Cable Clamp/Bush - XY3057/3420-10A |
| Gender | Female |
| No. of Contacts | 16 |
| No. of Pins | 10 |
| Mates With | XY3102A-18-1P |
| Locking System | Screw Lock |
| Termination | Solder |
| Electrical Rating | 13A 500VAC/700VDC |
