Product Details
Micro Servo 9G. SG90- 0.12SEC/60DEG-Stall Torque:1.2KG(4.8V); 1.6KG(6.0V)- 180° (90° in Each Direction)

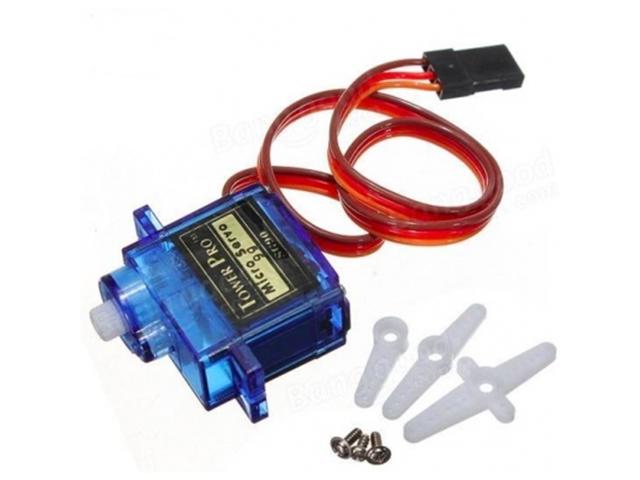

TowerPro SG90 Mini Analog Servo
Features
- High quality and high cost performance
- All Nylon Gear
- 245mm connector wire
- Large stall torgue of 1.6 Kg
- Small size and light weight
- With 3 sets of servo horns and fittings
Specifications
- Item Name : TowerPro SG90 Mini Analog Servo
- Operating Speed (4.8V no load) : 0.12sec/60 degrees
- Stall torque : 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
- operating voltage : 3.0-7.2V
- Temperature range : -30°C ~ 60°C
- Dead band width : 7us
- Item size : 3.2 x 3 x 1.2cm
- Item weight : about 9g
- Connector wire length : 24.5cm
Downloads
Additional Information
| Device | Micro Servo |
| Type | TowerPro | SG90 | Mini | Analog |
