Product Details

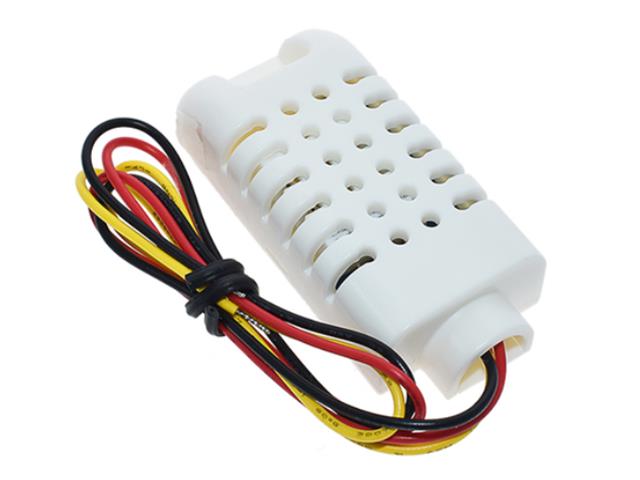

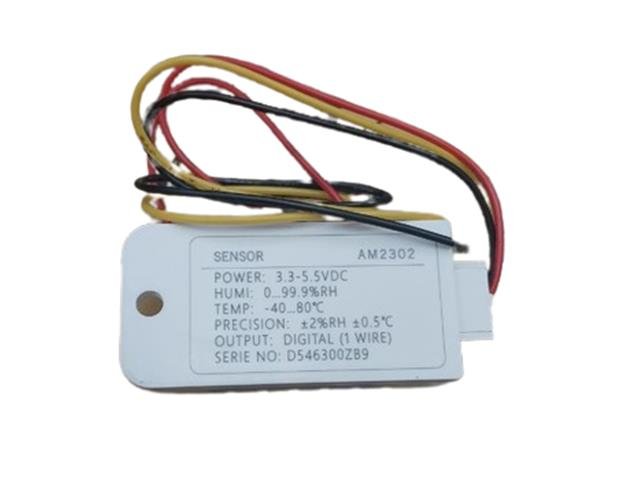

Original AM2302B (DHT22) Temperature and Humidity Sensor (Not on PCB)
Temperature and Humidity Sensor
Features
- The AM2302 Humidity Capacitance Digital Temperature and Humidity Sensor is a temperature and humidity composite sensor with a calibrated digital signal output.
- It uses dedicated digital module acquisition technology and temperature and humidity sensing technology to ensure high reliability and excellent long-term stability.
- Therefore, the product has the advantages of excellent quality, fast response, strong anti-interference ability and high cost performance.
- Each sensor is calibrated in a precision humidity calibration chamber.
- The calibration coefficients are stored in the OTP memory as a program, and these calibration coefficients are called internally during the processing of the detection signal.
- The sensor consists of a capacitive sensing element and an NTC temperature measuring element connected to a high performance 8-bit microcontroller.
- Communication with the microprocessor via a single bus requires only one line, 40 bits of data at a time, high first out. Small size, low power consumption, long communication distance, can be used in demanding applications.
Specifications
- Supply voltage (Vin): DC3.3-5. 5V
- Output signal: single bus digital signal
- Display resolution: 0.1C or 0.1%RH
- Temperature detection range: -40-80 C
- Humidity detection range: 0-99. 9%RH
- Humidity detection accuracy: ±2%RH
- Temperature detection accuracy: ±0.5C
- Acquisition cycle: 1/e(63%)<5s
- Storage temperature range: o- -8oC
- Storage humidity range: 95%RH or less (non-condensing)
- Product weight: 15g.
- Product shell material: PC plastic (high-strength mechanical properties, fatigue resistance, low creep, heat aging resistance, solvent resistance, excellent insulation properties)
Additional Information
| Device | Sensor |
| Type | Temperature and Humidity |
