Product Details

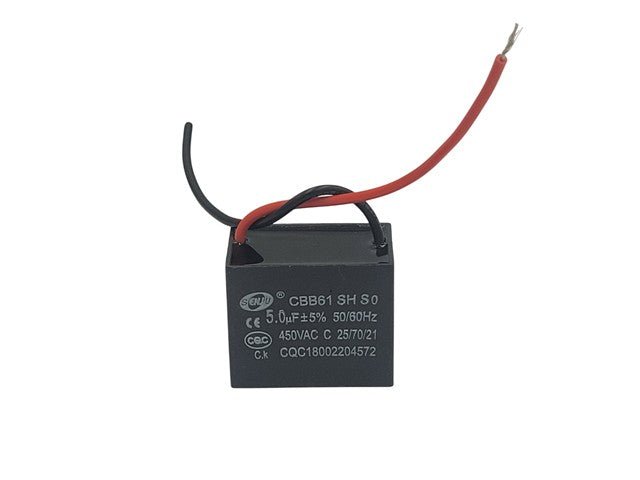

CBB61 5.0UF Starting Capacitance AC Fan Capacitor 450V CBB Motor Run Capacitor
5.0UF Starting Capacitance AC Fan Capacitor
Feature(s)
Construction & Type
- Capacitor Type: Metallized polypropylene film (CBB61 series)
- Design: Non-polarized (can be connected either way)
- Encapsulation: Plastic case (flame-retardant epoxy resin)
- Leads: 2-wire
Applications
- Ceiling fans
- Stand/desk fans
- Air conditioners (fan motors)
- Pumps & small single-phase AC motors
Function: Provides phase shift to start and run the motor efficiently.
Specifications
- Capacitance: 5.0 µF (microfarads)
- Tolerance: ±5% (sometimes ±10%)
- Rated Voltage: 450VAC
- Frequency: 50/60 Hz
- Insulation Resistance: ≥3000 MΩ (typical)
- Dissipation Factor: ≤0.002 (low loss)
Environmental Ratings
- Operating Temperature: -25°C to +70°C (typical, may vary by brand)
- Climate Category: 25/70/21 (common marking)
Physical Characteristics
- Shape: Rectangular / box type
- Typical Size: ~40 × 20 × 30 mm (varies slightly by manufacturer)
- Weight: ~0.1–0.2 kg (approx.)
Additional Information
| Device | Capacitor |
| Type | 5.0UF | AC Fan | 450V | CBB | Motor Run |
