Product Details

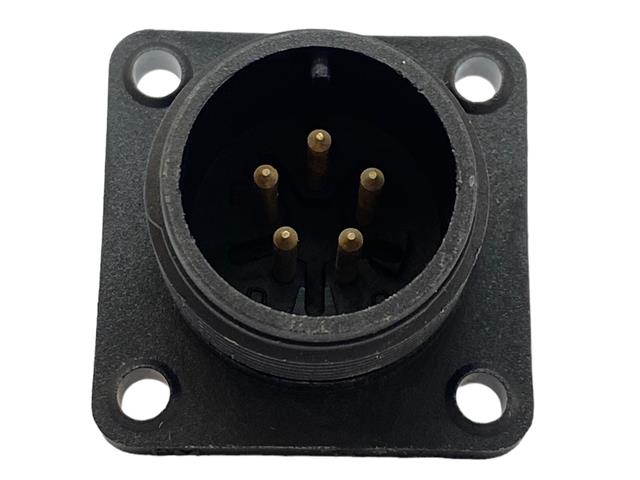

Circular Connector - C-5015 Style 5 Pole Panel Male Square. Flange Shell Size 14S Solder IP67
C-5015 Style 5 Pole Panel Male Circular Connector
Specifications
|
IP rating
|
IP67 |
|
Number of pins
|
5 |
|
Contact plating
|
silver plated |
|
Locking system
|
external thread, threaded joint |
|
Kind of connector
|
male |
|
Maximum current
|
10A |
|
Rated voltage
Â
Â
For products in the Cables and Wires category, a digit/digit number indicates:
Rated volage U0/U where: U0 = cable nominal voltage between the conductor and the metal covering or earth U = cable nominal voltage between the phase conductors |
50V |
|
Wire cross-section
|
1mm2 |
|
Conform to the norm
|
MIL-C-5015 VG 95342 |
|
Case
|
size 14S |
|
Operating temperature
|
-40...90°C |
|
Mechanical mounting
|
flange (4 holes), for panel mounting |
|
Electrical mounting
|
soldering |
Additional Information
| Device | Connector |
| Type | C-5015 Style | 5 Pole | Panel | Male | Circular |
