Product Details
Cable Gland Polyamide M32X1,5 for Cable 18-25mm Grey
Cable Gland Polyamide M32X1,5
Specifications
- Material : Polyamide V0 according to UL94
- Seal : NBR
- Protection class
- IP 54,
- IP 68 with additional O-ring,
- IP 69 K
- Type Rating by
- 12,
- 4,
- 4X,
- 6,
- UL 50E
- Temperature range : -40°C to +100°C
- Colour : grey
- Variant : Metric

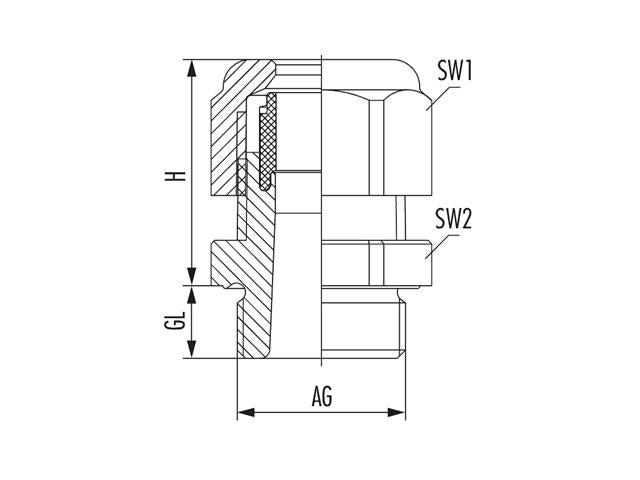

- External thread (AG) : M32 x 1,5
- Cable diameter : 18 – 25 mm
- Thread length (GL) : 11 mm
- Height (H) : 39 mm
- Wrench size (SW1/SW2) : 42/42 mm
- Tightening torque : 6.5 Nm
- Product group : Standard
Additional Information
| Device | Cable Gland |
| Type | Polyamide | M32X1,5 |
| Keywords | 1209320050 |
