Product Details

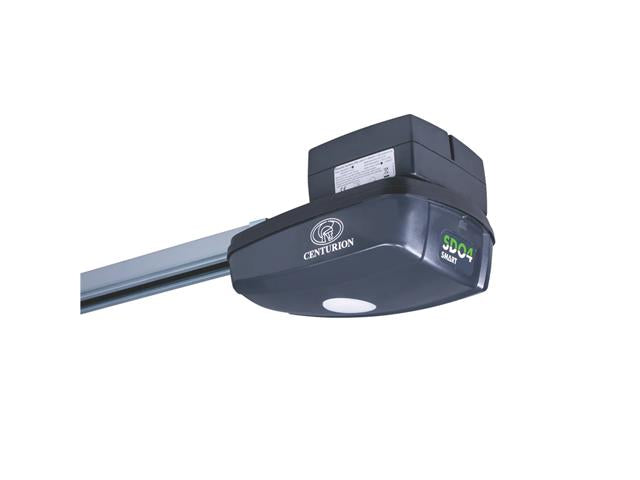

CENTURION SD04 Smart (T12) Sectional Garage Door Motor Kit, Includes : (2 X 4 Button Remotes, 1 x Wall Pendant, 2X12V3A Batteries, 1 x Single Piece Track 3M Sect/D Belt) SDO4S_T12_SB0
Sectional Garage Door Motor Kit
Specifications
- Input voltage : 230V AC +/-10% @ 50/60Hz1
- Motor voltage1 : 24V DC
- Motor power supply - rated2 : 100W DC
- Motor supply Battery supply : 2 x 3.4Ah 12V DC
- Maximum door width : 6.5 metres
- Maximum door area : 15 Square meters
- Maximum push/pull force : 50kgf
- Maximum lifting capacity : 1200N
- Operations in standby mode : Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries
- Maximum operator travel speed3 : 9m/min
- Door travel adjustmentvPhysical end-stops (Automatic limit set)
- Safety obstruction force system : Built-in menu
- Light : LED 2W
- Autoclose2 : Menu Selectable
- Infrared safety beams : Menu Selctable (Optional but recommended)
- Onboard receiver type : Code-hopping single channel
- Receiver code storage capacity : 20x 4-Button Transmitters
- Receiver frequency : 433.92Mhz
Downloads
Additional Information
| Device | Motor Kit |
| Type | Sectional | Garage Door |
