Product Details
Centurion Garage Door RDO Digital ROLL-Up Motor Kit - 2x4 Button Remotes, Motor 24VDC, Control Box, 2x12V1.3AH Batteries & PSU, Weight Bar, Max Lifting Capacity:20Kg, Max Door Area:10m (Max Width:2.8M, I/P:220V AC +/- 10% @ 50Hz

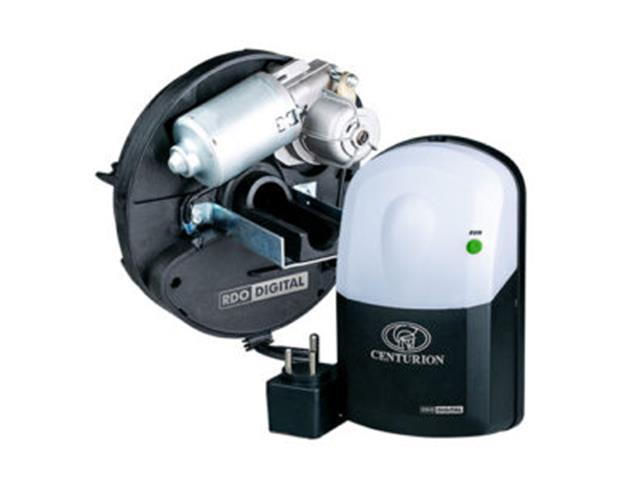

Garage Door RDO Digital ROLL-Up Motor Kit
Specifications
- Technical Data : RDO DIGITAL
- Input voltage : 220V AC +/- 10% @ 50Hz1
- Motor voltage : 24V DC
- Motor power supply - rated : 120W DC
- Motor supply : Battery-powered with 2 x 1.3Ah 12V batteries and 300mA charger
- Maximum door width : 2.8 meters
- Maximum door area : 10 meters2
- Maximum lifting capacity : 20kg
- Operations in standby mode : 12 to 20 cycles, dependent on door size, weight, height and duration of power failure
- Operator travel speed : 110 to 150mm/sec, dependent on door weight
- Door travel adjustment : Digitally-adjustable limits
- Safety obstruction force system : Automatic with adjustable offset
- Light : LED
- Onboard receiver type : NOVA code-hopping (single channel)
- Receiver code storage capacity : 20 remotes2
- Receiver frequency : 433Mhz
Downloads
Additional Information
| Device | Motor Kit |
| Type | Garage Door | RDO | Digital | Roll-Up |
