Product Details

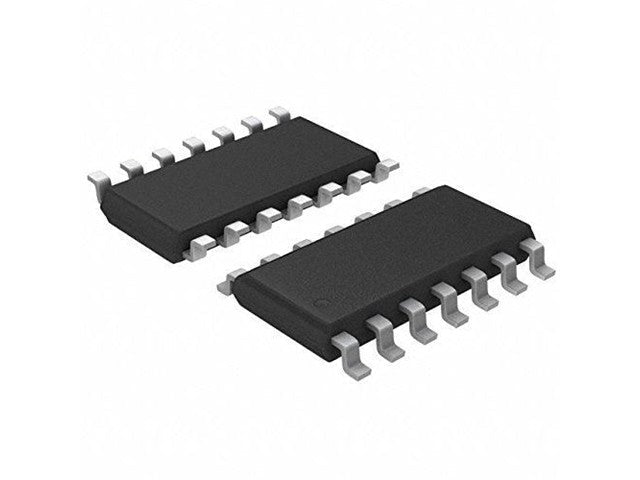

IC Gate NOR 4CH 2-INP 14SOIC
Specifications
|
Logic Type
|
NOR Gate |
|
Number of Circuits
|
4
|
|
Number of Inputs
|
2
|
|
Voltage - Supply
|
1.5V ~ 5.5V
|
|
Current - Quiescent (Max)
|
4 µA
|
|
Current - Output High, Low
|
24mA, 24mA
|
|
Input Logic Level - Low
|
0.3V ~ 1.65V
|
|
Input Logic Level - High
|
1.2V ~ 3.85V
|
|
Max Propagation Delay @ V, Max CL
|
11.5ns @ 5V, 50pF
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
14-SOIC
|
|
Package / Case
|
14-SOIC (0.154", 3.90mm Width)
|
Additional Information
| Keywords | Advanced CMOS, High Speed, TTL, NOR Gate |
| Device | Logic Gate |
