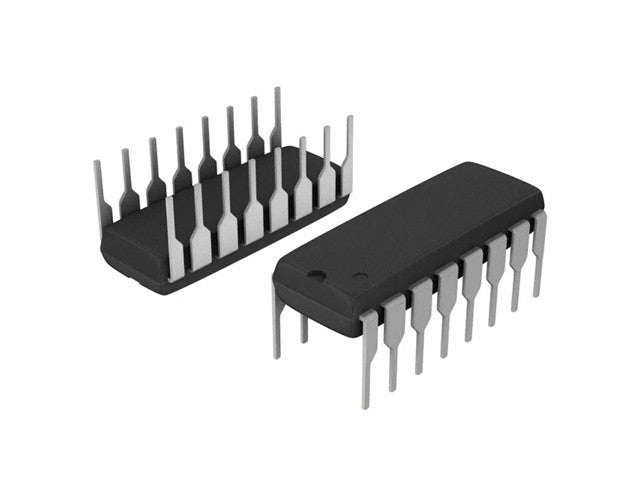

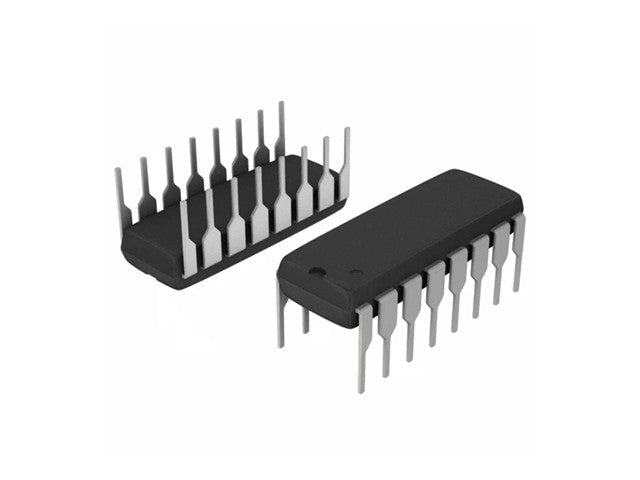

Product Details
I.C. CMOS
Specifications
- Number of Elements: 1
- Number of Bits per Element: 4
- Clock Frequency: 12 MHz
- Max Propagation Delay @ V, Max CL: 90ns @ 15V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 8.8mA, 8.8mA
- Voltage – Supply: 3V ~ 15V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 10 pF
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Supplier Device Package: 16-PDIP
- Package / Case: 16-DIP (0.300", 7.62mm)
- Base Product Number: CD40175
Additional Information
| Device | IC |
