Product Details

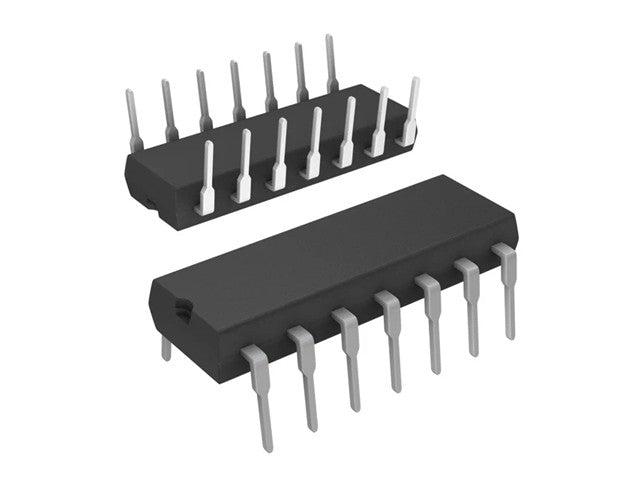

OR Gate Quad Exclusive 14PD (25)
Specifications
|
Logic Type
|
XOR (Exclusive OR) |
|
Number of Circuits
|
4
|
|
Number of Inputs
|
2
|
|
Voltage - Supply
|
3V ~ 15V
|
|
Current - Quiescent (Max)
|
1 µA
|
|
Max Propagation Delay @ V, Max CL
|
150ns @ 10V, 15pF
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
14-MDIP
|
|
Package / Case
|
14-DIP (0.300", 7.62mm)
|
Additional Information
| Device | IC |
