Product Details

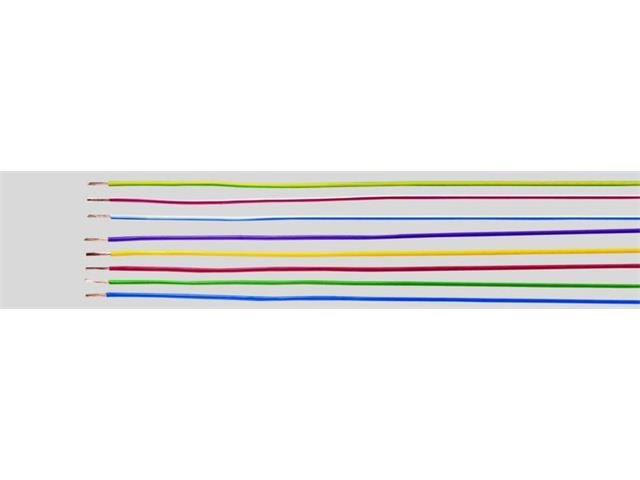

Panel Flex Multistranded 1,5mm Green (Price per meter)
Panel Flex Multistranded 1,5mm
Specifications
- PVC single core acc. to
- DIN VDE 0285-525-2-31 /
- DIN EN 50525-2-31 / IEC 60227-3
-
Temperature range
- flexing +5°C to +70°C
- fixed installation -30°C to +80°C
-
Nominal voltage
- U0/U 450/750 V
-
Test voltage
- 2500 V
-
Insulation resistance at +70°C
- nach DIN VDE 0285-525-2-31
-
Minimum bending radius
- fixed installation
- core Ø ≤ 8 mm: 4x outer Ø
- core Ø > 8-1 2 mm: 5x outer Ø
- core Ø > 12 mm: 6x outer Ø
Downloads
Additional Information
| Device | Wire |
| Type | Panel Flex | Multistranded | 1,5mm |
