Product Details

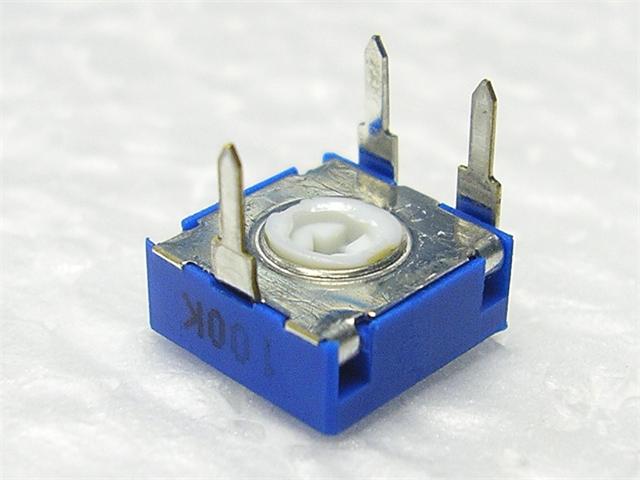

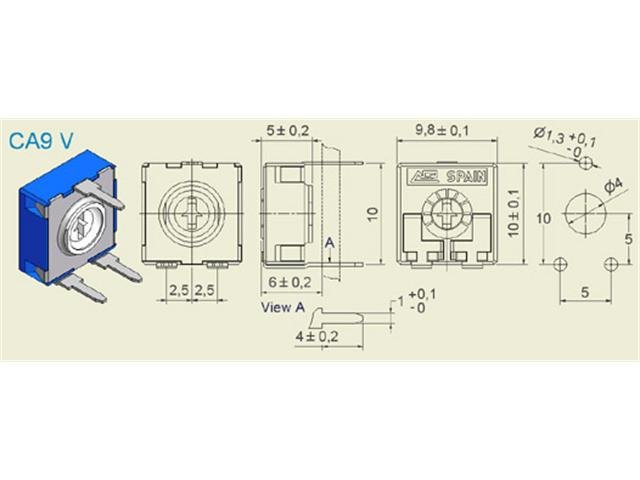

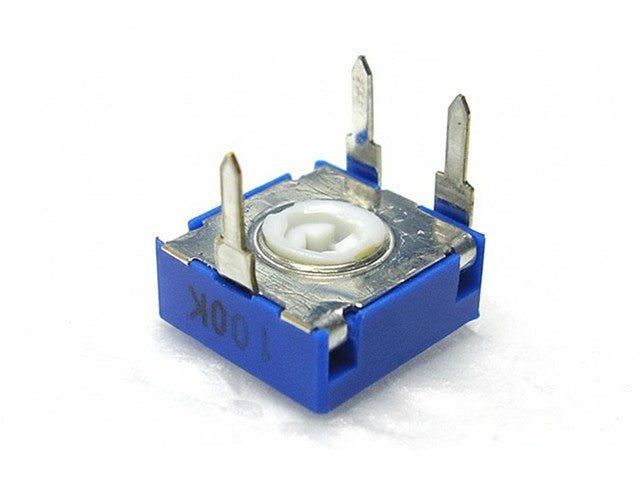

Single turn Carbon Trimmer Potentiometer, Model : CA 9, Size 9mm Sq. • PCB-V • Top Adjust • 0.15W @ 40°C • 47Ω • ±20% • 1 Turn 240° • Std Rotor.
Features
Std Rotor
Downloads
Additional Information
| Model | CA 9 |
| Device | Carbon Trimmer |
| Type | Single turn |
| Size | 9mm Sq. |
| Termination | PCB-V |
| Power Rating | 0.15W @ 40°C |
| Resistance Value | 47Ω |
| Tolerance | ±20% |
| Tolerance Code | M |
| Element Type | Carbon |
| No. of Turns | 1 Turn 240° |
| Adjust Style | Top Adjust |
