Product Details

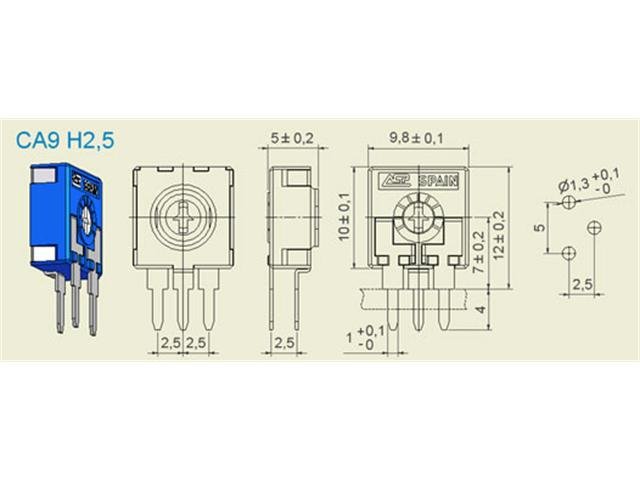

Single turn Carbon Trimmer Potentiometer, Model : CA 9, Size 9mm Sq. • PCB-H2.5 • Side Adjust • 0.15W @ 40°C • 100kΩ • ±20% • 1 Turn 240° • Rotor M

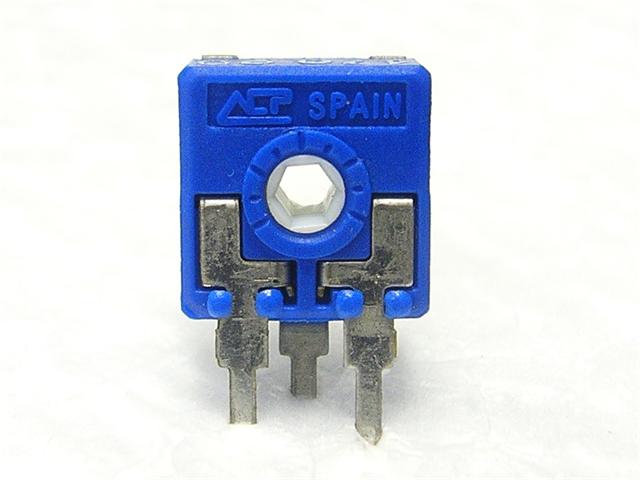

Single Turn Carbon Trimmer Potentiometer
Downloads
Additional Information
| Device | Potentiometer |
| Type | Single turn |
| Size | 9mm Sq. |
| Termination | PCB-H2.5 |
| Power Rating | 0.15W @ 40°C |
| Tolerance | ±20% |
| Tolerance Code | M |
| Element Type | Carbon |
| No. of Turns | 1 Turn 240° |
| Adjust Style | Side Adjust |
