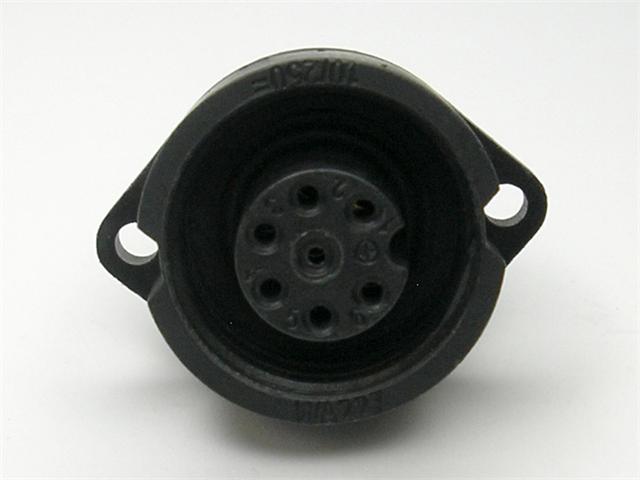

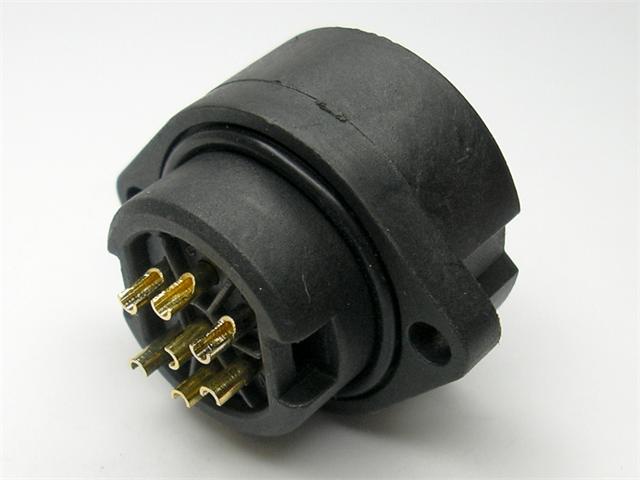

Circular Connector - RD24 Style Econo Series 7 Pole (6P+Earth) Panel Flange Mount Female Solder Terminal. 10A/250VAC .IP67

RD24 Style Econo Series 7 Pole Circular Connector

Specifications

Product Family	Power Connector
Product Sub Family	CA-Series
Connector Type	Receptacle
Type of Contact / Gender	female
Connector Design	Front mount with flange
Number of Pins	7(6+PE)
Shielding	Unshielded
Attachment Type	Locking Nut
Rated Voltage	250 V AC/DC
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V AC/DC
Rated Current*	10 A (0.75 mm²)
Contact Resistance	≤ 10 mOhm
Type of Connection	solder
Conductor Cross Section	max. 0.75 mm²
Ambient Temperature (Operation)*	-40°C to +90°C, notice derating
Temperature Range (Gasket)	-40°C to +90°C
Protection Degree / IP Rating**	IP65; IP67
Design Standard	DIN EN 61984 (VDE 0627)
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1

Contact Base Material	CuZn
Contact Plating	Cu/Ag
Contact Bearer Material	PA 66 GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-0
Gasket Material	NBR

Fastening Torque (Attachment)	M 3: (50-60) Ncm, not part of delivery
Mounting	M3, not part of delivery
Mating Connectors / Fitting to	934-126-100 CA 6 LS, straight 934-130-100 CA 6 W LS, angled
Accessories to Order Separately	CA00 SD 4: 831-531-100, cap

UL-File	E95522, Series CA 3
VDE	VDE-Reg.-Nr. 2745

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.

Device	Connector
Type	RD24 Style \| Econo Series \| 7 Pole \| Circular
