Product Details

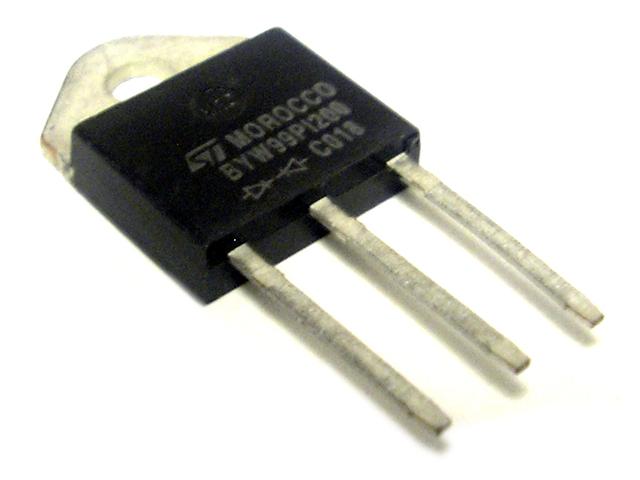

Ultrafast Recovery Rectifier Diode • TOP-3I Iso • Plastic • VF @ IF= 1.15V @ 25A • IF= 15A • VRRM= 200V • tRR= 40nS
Additional Information
| Model | BYW99PI-200 |
| Device | Rectifier |
| Type | Ultrafast Recovery |
| Forward Voltage @ Forward Current | 1.15V @ 25A |
| Device Package | TOP-3I Iso |
| Termination | Plastic |
| Repetive Peak Reverse Voltage | 200V |
| Forward Current | 15A |
| Reverse Recovery Time | 40nS |
