| Case |

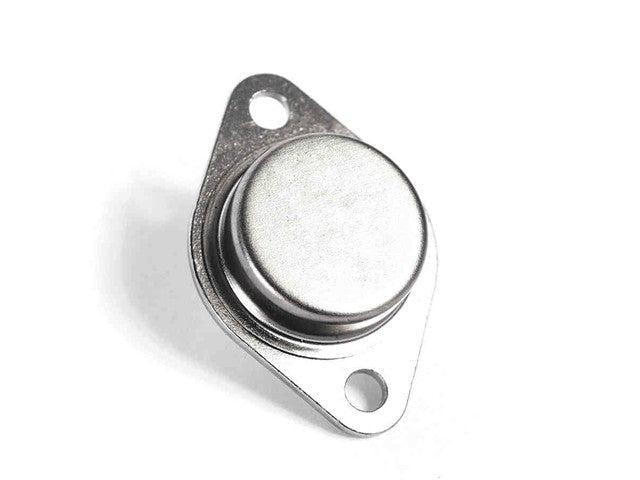

TO3 |
| Vbr CBO |
350 |
| Vbr CEO |
250 |
| Max. PD (W) |
350 |
| t(f) Max. (S) |
.60u |
| Max. hFE |
100 |
| Min hFE |
20 |
| Ic Max. (A) |
60 |
| @Ic (test) (A) |
5.0 |
| Icbo Max. @Vcb Max. (A) |
.20m |
| Polarity |
NPN |
| Tr Max. (s) |
1.0u |
| Derate Above 25°C |
2.0 |
| Trans. Freq (Hz) Min. |
16M |
| Oper. Temp (°C) Max. |
175 |
| @VCE (V) |
4.0 |
| Pinout Equivalence Number |
3-14 |
| Surface Mounted Yes/No |
NO |
| Maximum Collector Power Dissipation (Pc) |
350 W |
| Maximum Collector-Base Voltage |Vcb| |
350 V |
| Maximum Collector-Emitter Voltage |Vce| |
250 V |
| Maximum Emitter-Base Voltage |Veb| |
10 V |
| Maximum Collector Current |Ic max| |
60 A |
| Max. Operating Junction Temperature (Tj) |
200 °C |
| Transition Frequency (ft): |
10 MHz |
| Forward Current Transfer Ratio (hFE), MIN |
20 |
