Product Details

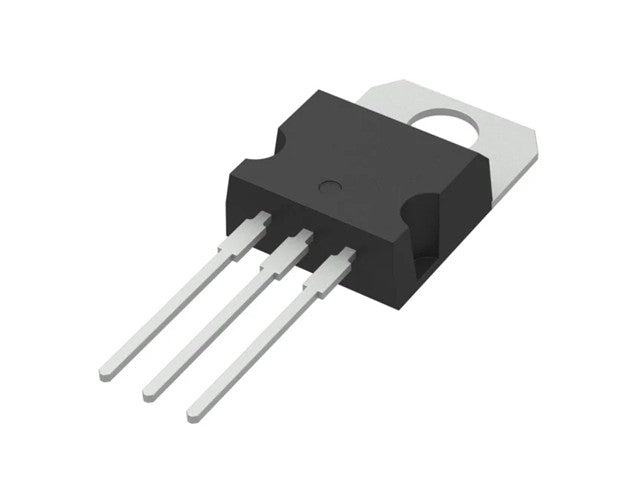

NPN 1500V 5A 50W Insulated + Diode
NPN Power Transistor
Specifications
- Maximum Collector Power Dissipation (Pc): 50 W
- Maximum Collector-Base Voltage |Vcb|: 1500 V
- Maximum Collector-Emitter Voltage |Vce|: 700 V
- Maximum Emitter-Base Voltage |Veb|: 10 V
- Maximum Collector Current |Ic max|: 5 A
- Max. Operating Junction Temperature (Tj): 150 °C
Electrical Characteristics
- Forward Current Transfer Ratio (hFE), MIN: 5.5
Additional Information
| Device | Transistor |
