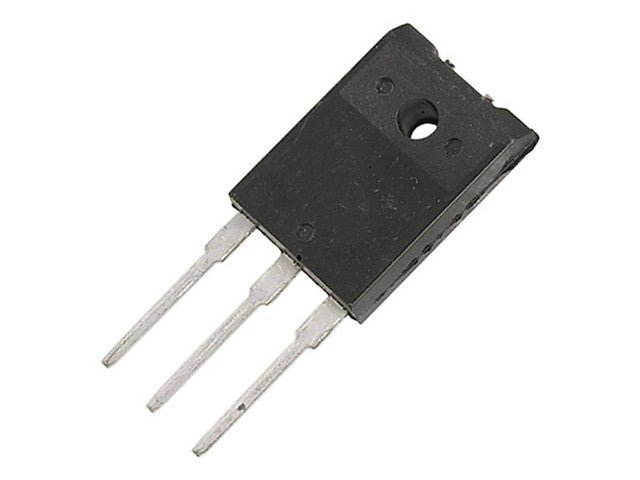

N 1500/800V 12A 45W TO-3PFa
N 1500/800V 12A 45W TO-3PFa
Specifications
| Parameter |
Typical / Max |
| Transistor Type |
NPN bipolar power transistor |
| Collector‑Emitter Voltage (Vceo) |
Up to 800 V (continuous) |
| Collector‑Base Voltage (Vcbo) |
Up to 1500 V peak |
| Continuous Collector Current (Ic) |
12 A |
| Peak Collector Current (Icm) |
~30 A
|
| Power Dissipation (Pc) |
45 W (at Tc = 25 °C) |
| Saturation Voltage (VCE(sat)) |
~5 V @ 8 A |
| Operating Temperature |
–65 °C to +150 °C |
| Package |
SOT‑199 / TO‑3P‑style isolated package |
