Product Details

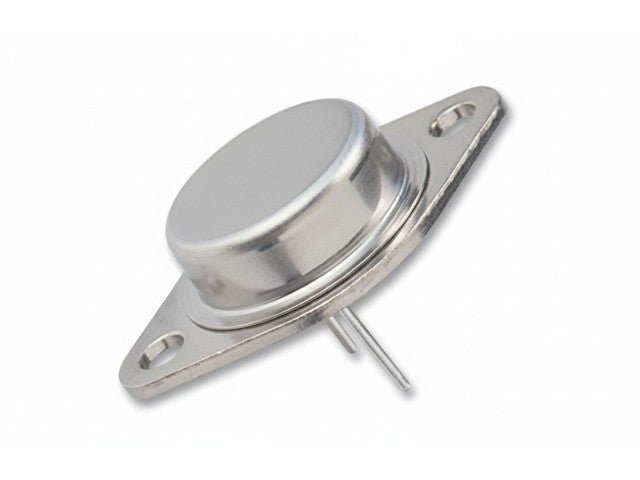

N 1500V 700V 5A 2,5MN TO3
N 1500V 700V 5A 2,5MN TO3
Specifications
|
Transistor Type
|
NPN |
|
Current - Collector (Ic) (Max)
|
8 A
|
|
Voltage - Collector Emitter Breakdown (Max)
|
700 V
|
|
Vce Saturation (Max) @ Ib, Ic
|
1V @ 2A, 4.5A
|
|
Current - Collector Cutoff (Max)
|
1mA
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
-
|
|
Power - Max
|
150 W
|
|
Frequency - Transition
|
7MHz
|
|
Operating Temperature
|
175°C (TJ)
|
|
Mounting Type
|
Chassis Mount
|
|
Package / Case
|
TO-204AA, TO-3
|
|
Supplier Device Package
|
TO-3
|
Additional Information
| CatGroup | Transistor |
| Device | Transistor |
