Product Details

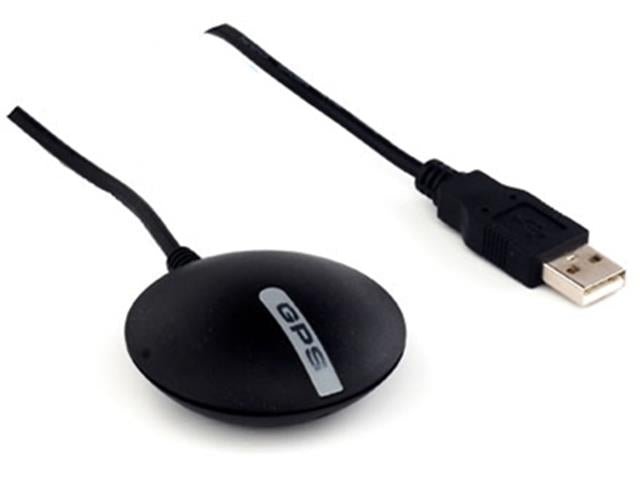

USB GPS Receiver with Media TEK AG3335MN Chipset without CD (Main Unit & Suction Cup)
USB GPS Receiver
Specifications
General
- Chipset : MediaTek AG3335MN
- Frequency
- GPS, Galileo, QZSS, SBAS : L1, 1575.42 MHz, C/A code
- GLONASS : L1, 1602 MHz
- BeiDou : B1, 1561.098 MHz
- C/A code 1.023 MHz chip rate
- Channels 75 track verification channels
- Sensitivity Tracking: -165 dBm
Accuracy
- Position :
- 3 meters, 2D RMS
- 2.5 meters, 2D RMS, SBAS enabled
- Velocity : 0.01 m/s
- Time 1us synchronized to GPS time
Datum
- Default WGS-84
Acquisition Time
- Reacquisition : 0.1 sec., average
- Hot start : < 1 sec., average
- Cold start :
- < 33 sec
- < 15 sec with AGPS
Dynamic Conditions
- Altitude : 18,000 meters (60,000 feet) max
- Velocity : 515 meters /second (1000 knots) max
- Acceleration : Less than 4g
- Jerk : 20m/sec
Power
- Main power input : 4.5V ~ 6.5V DC input
- Power consumption : 42mA @5V
Protocol
- Electrical : level : Output voltage level: 0V ~ 2.85V
- Baud rate : 4800 bps, 8 data bits, no parity, 1 stop bit
- Output message : NMEA 0183 GGA, GSA, GSV, RMC, GLL, VTG, ZDA, GRS, GST
Physical Characteristics
- Dimension : 53mm diameter, 19.2mm height
- Cable Length : 1.5M
- Operating temperature : -40°C to +85°C
