Product Details
STM32F103C8T6 Small System Development Board Microcontroller STM32 ARM Core Board

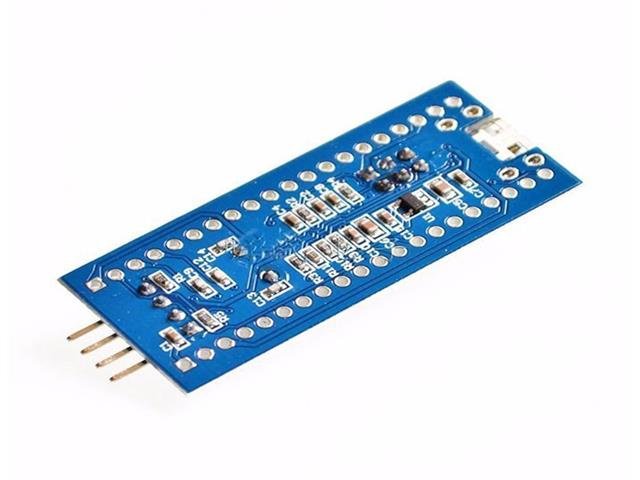

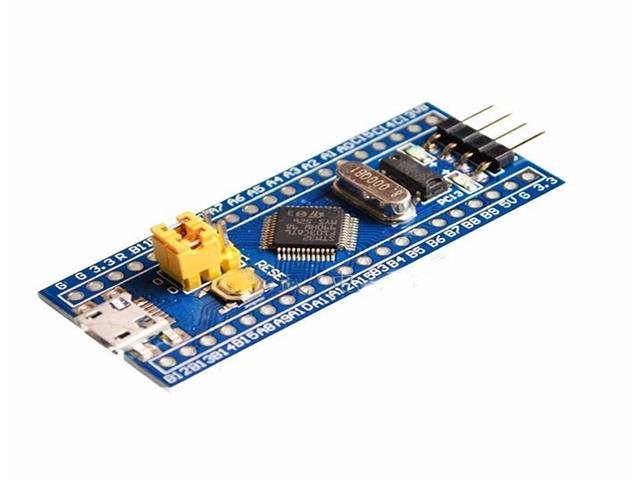

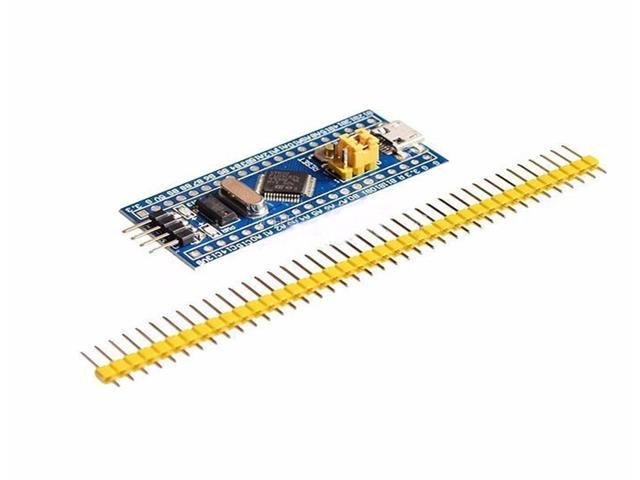

STM32F103C8T6 Small System Development Board
Features
- Power LED (PWR): Power indicator status, can determine whether the power supply is stable.
- The user LED (PC13): to facilitate the I / O output test or indicate the program running.
- Start jumping choose programming mode: (1, the user flash memory 2, SRAM 3, system memory).
- Reset button: reset chip for the user program.
- 8M Crystal: The frequency can be set to make the system clocked at 72MHz.
- 6,32.768KHz Crystal: Available for built-in RTC, or for calibration.
Specifications
- STM32F103xx Dev Board
- Model: STM32F103C8T6
- Core: ARM 32 Cortex-M3 CPU
- Debug mode: SWD
- 72MHz work frequency
- 64K flash memory, 20K SRAM
- 2.0-3.6V power, I/O
- Reset(POR/PDR)
- 4-16MHz crystal
- On-board Mini USB interface, you can give the board power supply and USB communication
- Size: 53.34mm x 22.86mm
Additional Information
| Device | Development Board |
| Type | STM32F103C8T6 | Small System |
