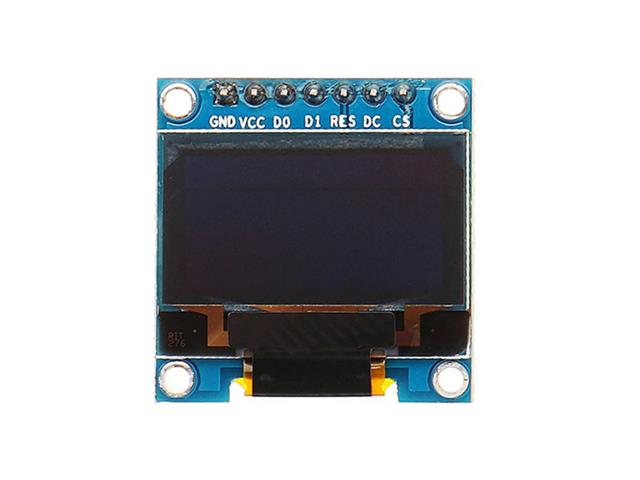

0.96IN OLED Graphic Display 128X64 Blue on Black SPI (7Pin)
0.96IN OLED Graphic Display
Overview
This is a small high contrast OLED graphics display with 128x64 pixels. The display works with both 5V and 3.3V systems without any modification. The display Driver uses the popular SSD1306 chipset which is well catered for with example code on the internet for many microcontrollers. The example code for the similar Adafruit displays also works.
The code works on Arduino boards as well as the popular Teensy boards.
Specifications
- 128x64 pixels
- SPI interface
- 5V and 3.3V operation
- Board Size : 34mm x 27mm
- Visual Area : 23.74 x 12.86mm
- Active Area : 21.75(W) x 10.85(H) mm
- Diagonal Size : 0.96“
- Dot (Pixel) Pitch : 0.17x0.17mm
- Display Driver : SSD1306
- Contrast Ratio(Typ) : 2000:1
- Viewing Angle Range : Left:80.0, Right:80.0, Up:80.0, Down:80.0 degree
- Appearance : Blue on Black
- Brightness(Typ) : 120cd/m2
- OLED -------- Arduino/Teensy
- GND -------- GND
- +V -------- 5V/3.3V
- DAT -------- SDA
- CLK -------- SCL
- RST -------- D9 (can be any digital pin)
- Generate a splash screen with our BMP to LCD 128x64 Converter
Additional Information
| Device | Graphic Display |
| Type | 0.96IN | OLED |
