Product Details
REXC100 Temp Controller + SSR-40DA Solid State Relay + Type K Thermocouple 1m Probe + Heat Sink . Input Voltage：100-240V. Universal Input. Output：SSR (3-32V). Alarm Mode：High Temperature Alarm (Adjustable)
Temp Controller + SSR-40DA Solid State Relay
Specifications

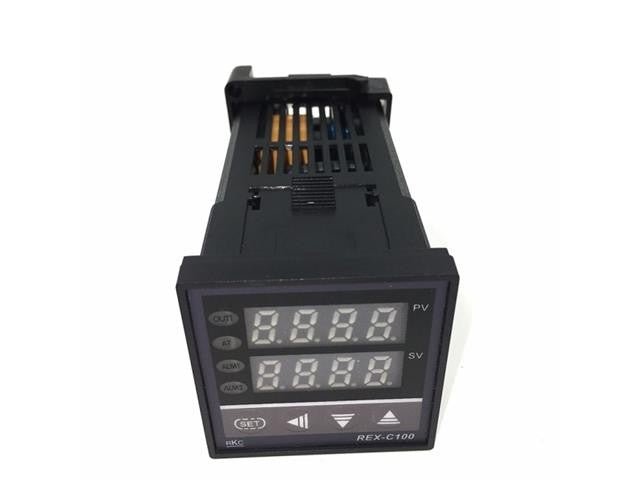

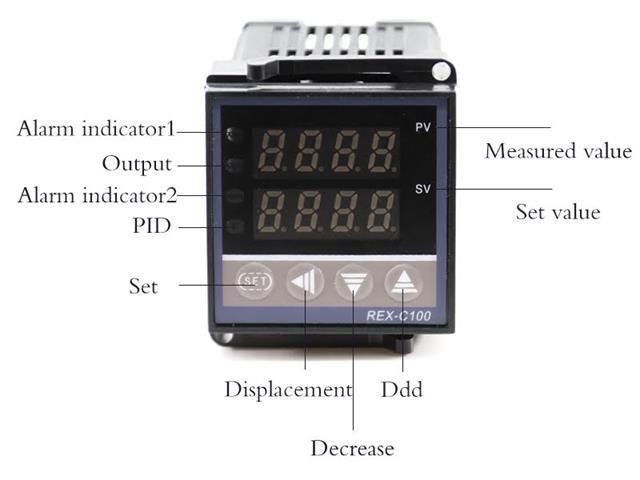

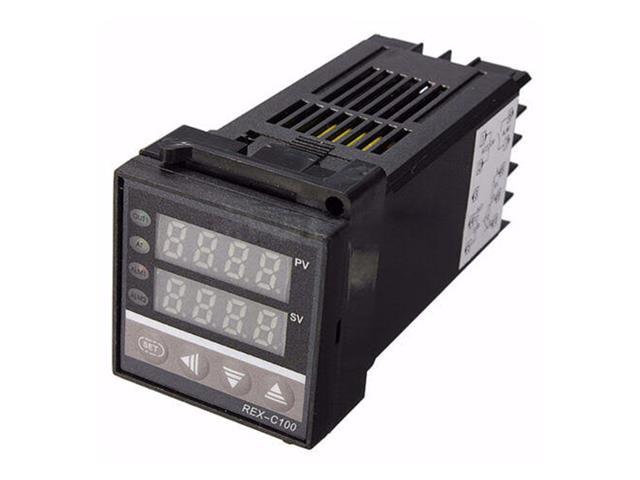

- Model: REX-C100FK02-V*AN
- Range：Factory settings 0-400°C The highest Can be adjusted to 1300 °C
- Size：48*48*110mm
- Opening size：45*45mm
- Input voltage：100-240V
- Output：SSR (3-32V)
- Control method：PID Automatic control (Selectable on or off)
- Alarm mode：High temperature alarm (Adjustable)
- Applicable Thermocouple ：K, J, R, S, B, E, N, T, W5Re/W26Re, PLII
- RTD: Pt100, JPt10
- Contact output：5A

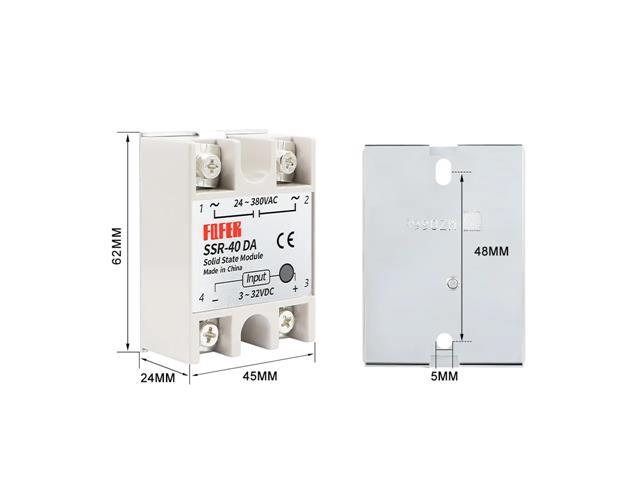

- solid state relay(SSR)：40DA （For power below 4400W）

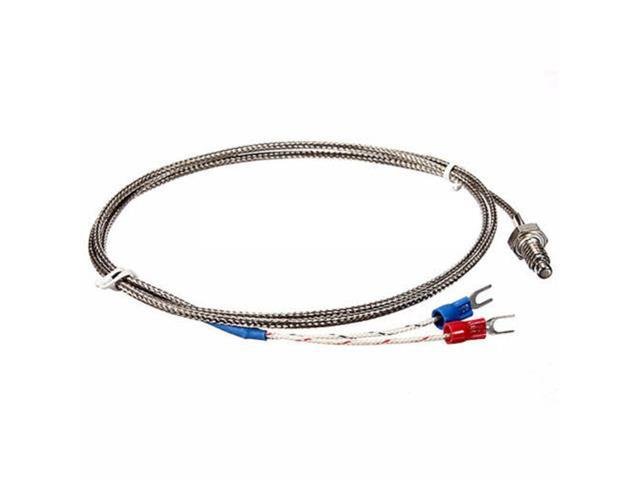

- Thermocouple：6mm Thread+1 meter
- Heat sink：60mm*49mm*81mm

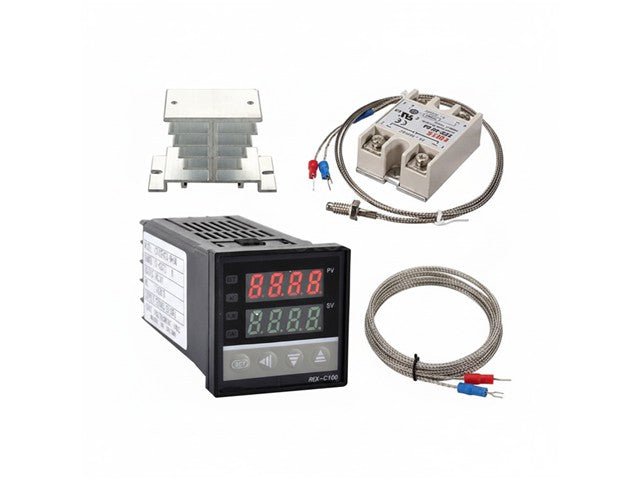

Package Included:（as picture shows）
- 1 x PID Temperature Controller
- 1 x K Type Probe Sensor
- 1 x Max.40A SSR
- 1 X Heat Sink
Downloads
Additional Information
| Device | Relay |
| Type | Temp Controller + SSR-40DA | Solid State |
